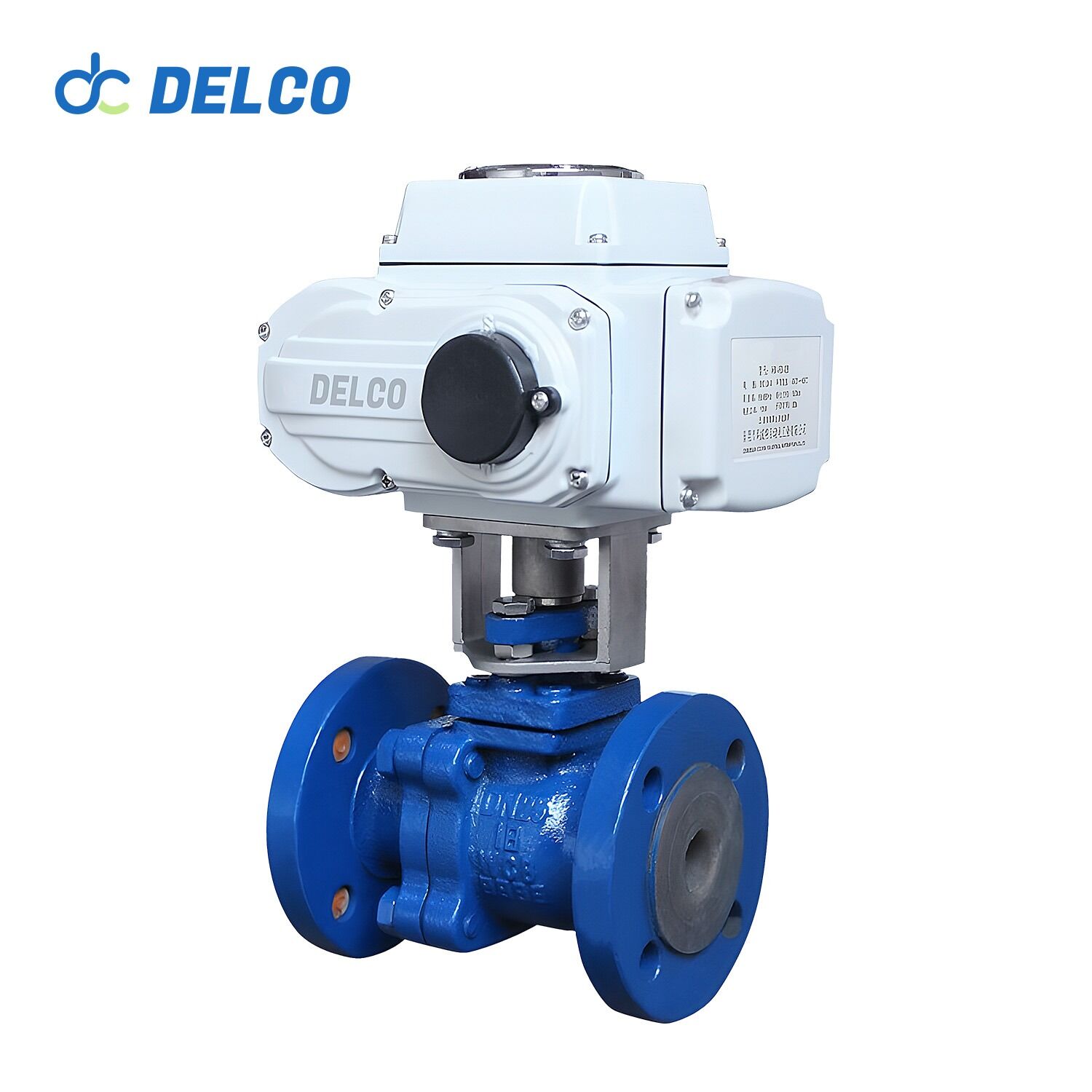

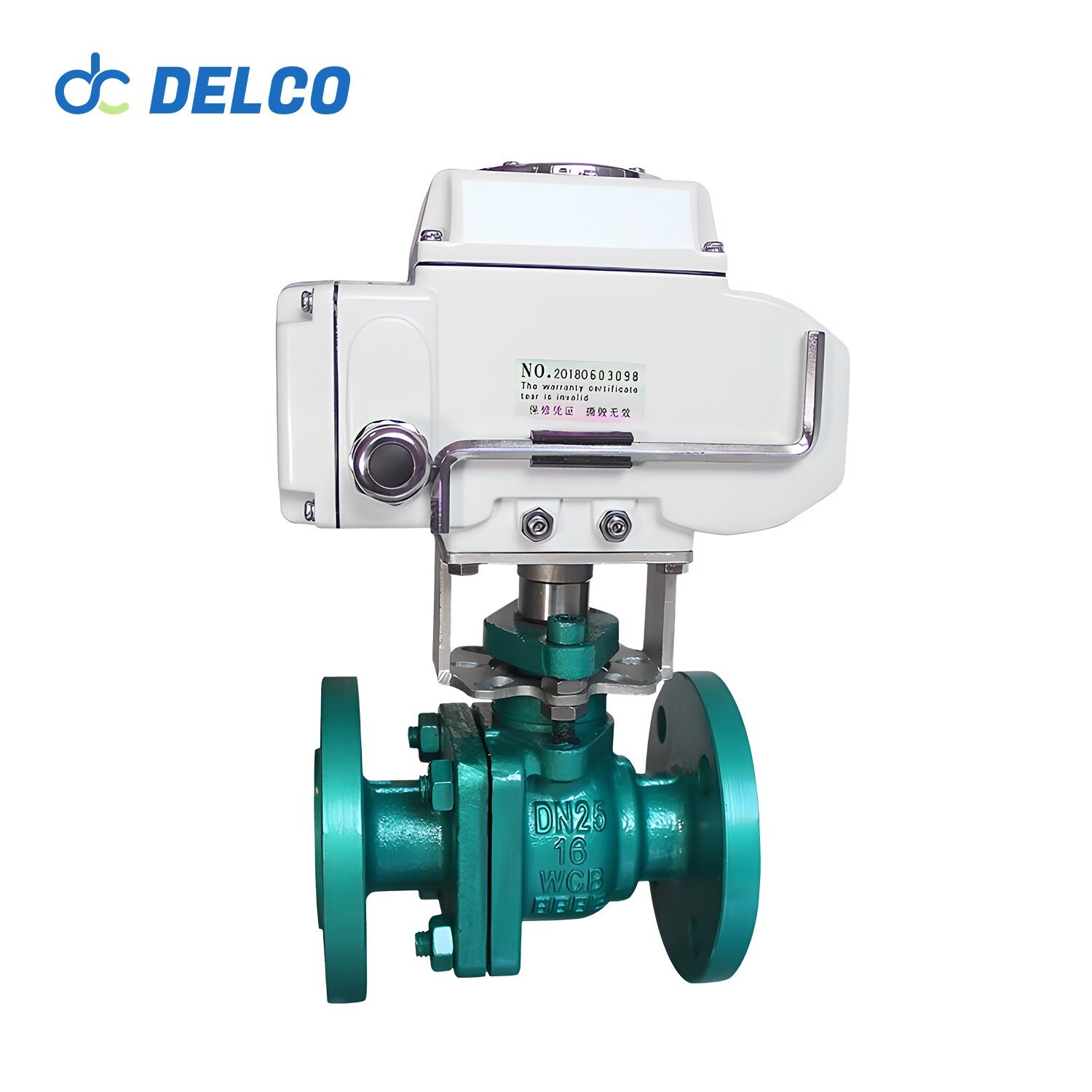

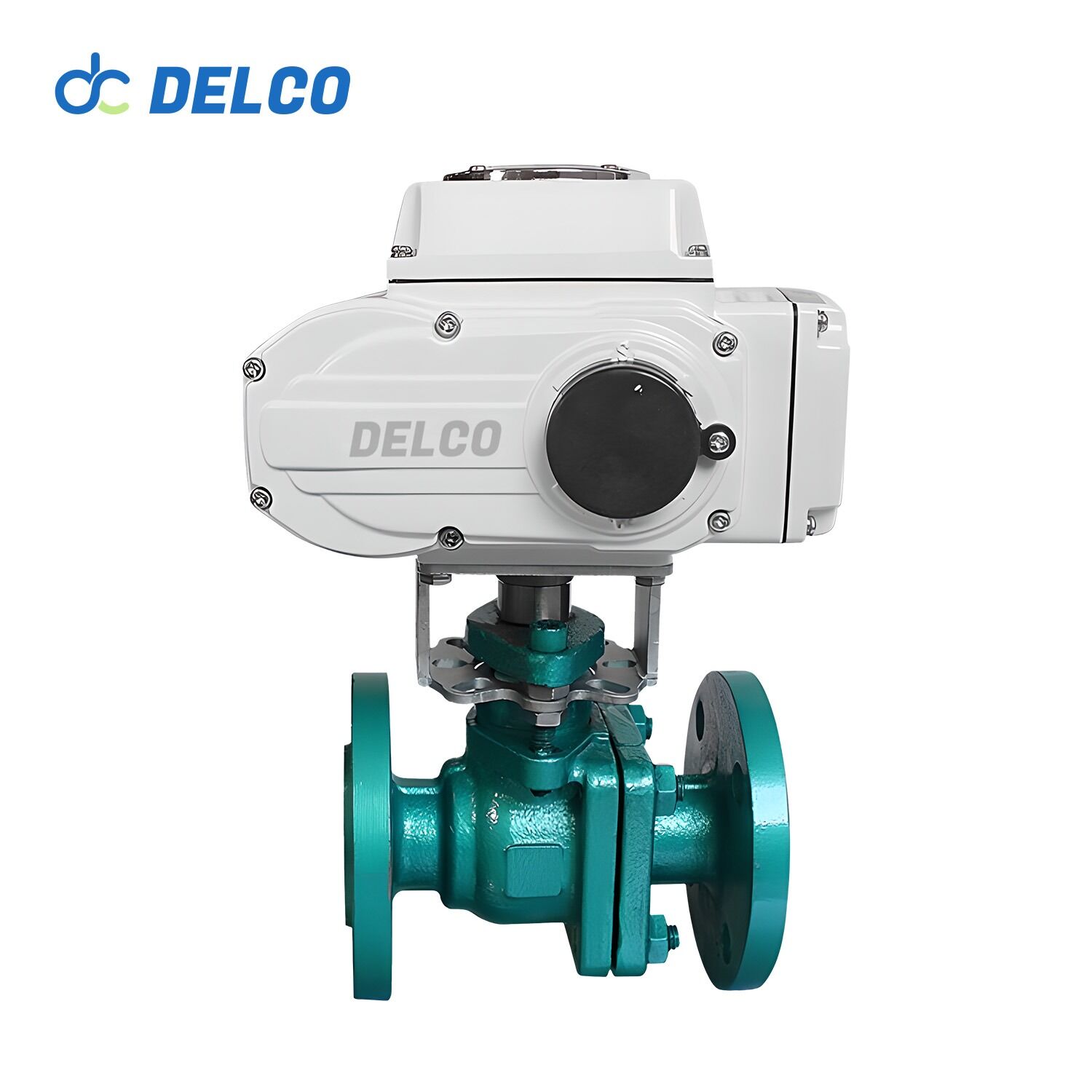

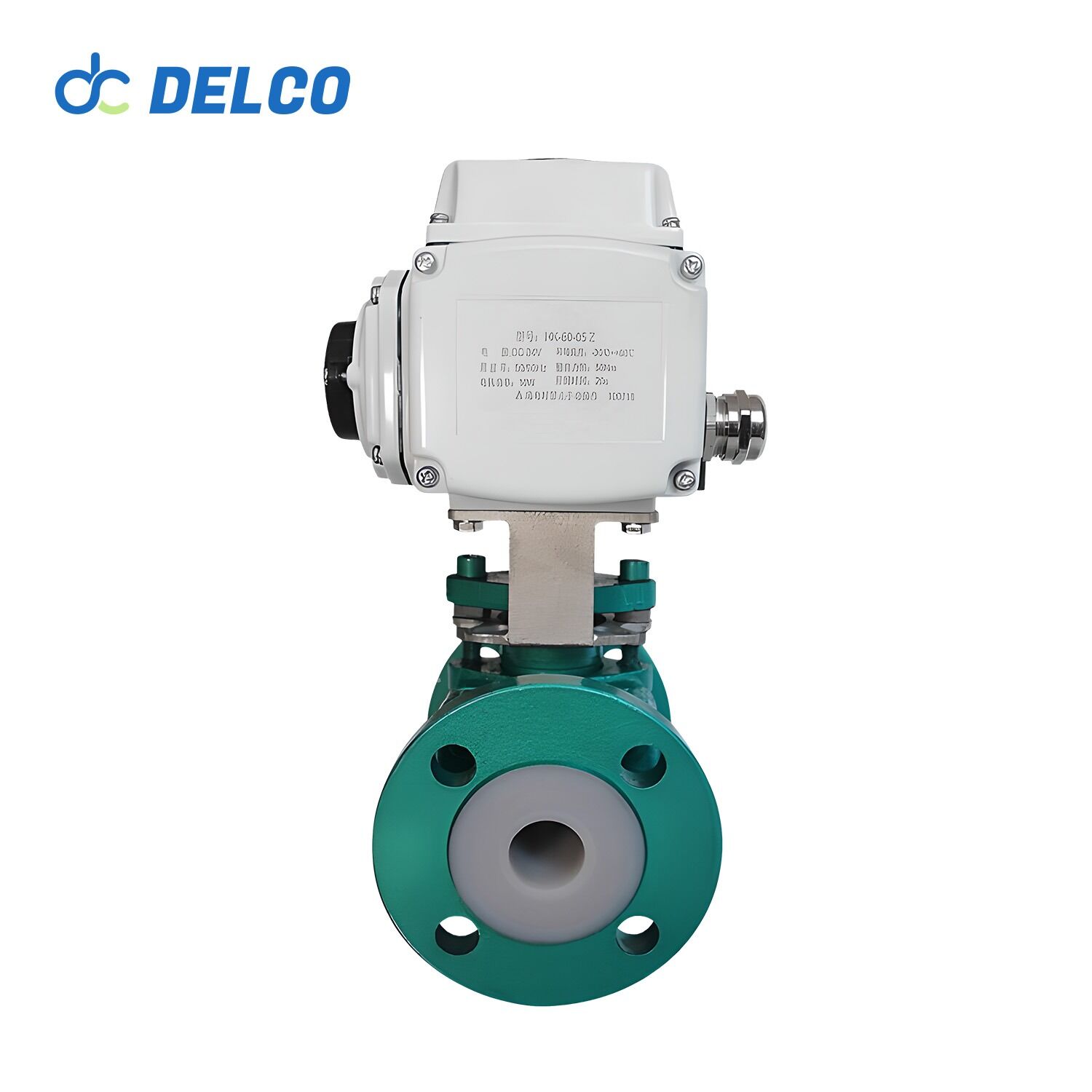

Fluorine Lining Electric Actuator Ball Valves

Fluorine Lining Electric Actuator Ball Valve

DELCO 220V 氟襯電動球閥-DK55-CF

Fluorine-lined ball valves feature a conventional ball valve structure with a Teflon lining on the ball and interior of the valve body. This lining acts as a barrier, isolating the media from the valve body and providing excellent corrosion resistance. The valve offers tight closure and reliable sealing performance, making it suitable for handling various corrosive media including acids, alkalis, salts, oxidizing agents, reducing agents, and organic solvents.

As a leading electric ball valve manufacturer, DELCO provides a wide range of electric ball valves including 2-way, 3-way, and 4-way options with various connection types such as flange, male/female thread, tri-clamp, butt-welded, and PVC double union. Additionally, we offer butterfly valves, pneumatic actuated valves, and solenoid valves to meet diverse industrial needs. Contact us today for a quote!

模型： DK55-CF

尺寸範圍： 1/2” to 4”

壓力範圍： 1.6MPa至6.4MPa

材料： WCB,CF8

What Is Fluorine Lining Electric Actuator Ball Valve？

Fluorine lining electric actuator ball valves combine the superior corrosion resistance of fluorine-lined valves with the automation capabilities of electric actuators. These valves feature a ball with a Teflon (PTFE) lining, providing excellent isolation between the media and the valve body. The addition of an electric actuator enables automated control of the valve, allowing for precise positioning of the ball to regulate flow.

With their fluorine lining, these valves are highly resistant to corrosion and are suitable for handling a wide range of corrosive media, including acids, alkalis, salts, and organic solvents. The electric actuator provides convenient and reliable operation, making fluorine lining electric actuator ball valves ideal for applications where automated control and corrosion resistance are essential, such as in chemical processing plants, water treatment facilities, and industrial manufacturing processes.

閥門技術參數表：

閥體		閥門部件
公稱尺寸	DN15-DN100	密封材料	聚四氟乙烯：-29℃~180℃
閥體材質	勞工賠償委員會	光碟材質	鑄鐵
端部連接	法蘭	閥桿材質	不銹鋼
工作壓力	1.6 / 2.0 / 6.4 MPa ( 16 / 20 / 64 bar)	適用介質	水、空氣、氣體、石油、油、液體
結構	浮球芯	設計標準	英國、美國海鮮市場協會

DELCO Fluorine Lining Electric Actuator Ball Valves

Beautiful appearance, compact structure, high strength, zero leakage
Strong corrosion resistance, a broad scope of application
Diversified performance, suitable for the transmission of mediums with large pressure drops and large temperature drops, convenient to install
The patent positioning technology, reliable products and brands
Can Be Customized to Meet Specific Application Needs
Simple structure, easy to operate ,high cost-effective

電動執行器：

開/關型電動執行器： 此致動器具有 90 度旋轉功能，提供交流/直流電源、訊號控制和手動控制功能。高達 4000Nm 的高扭力可確保在嚴苛的環境下實現可靠的性能。

調節型電動執行器： 使用此致動器可在 0 度至 90 度之間平穩調整開/關角度。配備交流/直流電源、訊號控制和手動操作，可提供精確的控制和高達 4000Nm 的高扭力。

智慧型電動執行器： 使用智慧型執行器輕鬆控制，讓您精確調整開/關角度。它具有方便監控的 LED 顯示屏，提供交流/直流電源、信號控制、手動操作和高達 4000Nm 的高扭矩。

產品型號：	DK55-CF	外殼材質：	鋁合金
防水等級：	IP67	馬達電源：	24/110/220/380V交流±10％，24/110/220VDC 50/60HZ±10％
引擎：	鼠籠異步電動機	行程：	90°-270±10°（提早90°以上）
故障安全：	內建熱保護：120°C±5°C	工作溫度：	97℃±15℃
指標：	連續位置指示	手動操作：	機械手柄
自鎖裝置：	渦輪和蝸桿機構提供自鎖	機械限制：	2 外部調整
端子孔：	M18	環境溫度：	-20℃至70℃
潤滑：	鋁基潤滑脂 EP 型	材料：	鋼、鋁合金、鋁青銅、聚碳酸酯
環境濕度：	最高至 90%	防護等級：	IP65； IP67； IP68
防爆等級：	防爆ⅡBT4；防爆ⅡCT6	環境溫度：	-25℃至55℃
環境濕度：	10~90%RH	抗震性能：	XYZ 10公克,0.2-34HZ 30分鐘
塗層：	乾粉、環氧聚酯	製造標準：	GB/JB/HG/HG/ANSI/API/JIS/DIN/其他標準定制
