Why Choose a Pneumatic Three-Way Flanged Ball Valve?
Pneumatic three-way flange ball valve in the gas, liquid, steam and oil and other corrosive media pipeline automation control, it can accurately switch the media flow direction, strong fluid control ability, sealing Reliable, switching lightweight, suitable for large diameter and high pressure pipeline system used to cut off, distribute and change the direction of media flow, play a vital role.
Table of contents
- Pneumatic three-way flange ball valve structure features
- Working Principle
- 3 Way flange Ball Valves technical Parameter
- Advantages of pneumatic three-way flange ball valve
- Application areas of pneumatic three-way flanged ball valve
- Why more and more international valve brands choose DELCO for OEM service?
- How to get a quick quote for industrial valves?

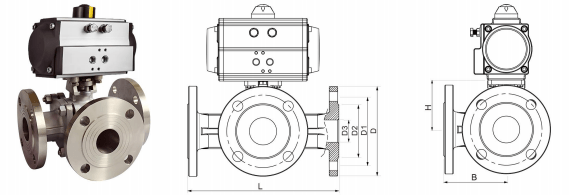

Pneumatic three-way flange ball valve structure features
- Full bore design: to ensure rapid response, to achieve zero leakage.
- Fireproof and anti-static structure: Silicone sol precision casting, safe and reliable.
- Thrust bearing: reduce the friction torque of valve stem, make the operation smooth and flexible.
- Bidirectional sealing, bidirectional pressure bearing: automatic compensation, self-cleaning function.
- Diversified spool design: L-type and T-type to meet the needs of different working conditions.
- adjusting screw: standard products have ±4° adjustable range at 0° and 90° to ensure synchronization accuracy with the valve.
- Preventing stem ejection: the design of under-mounted stem and stem head cam step ensures sealing even when fire causes sealing damage.
Working Principle:
Pneumatic three-way ball valves are able to connect or close two channels perpendicular to each other by rotating the spool to switch the medium flow direction. Its design ensures that the valve switching lightweight, small size, suitable for large-diameter applications, and reliable sealing, simple structure, easy maintenance. Four-seat sealing design can not only switch the direction of media flow, but also can make the three channels connected to each other or close any channel, so as to flexibly control the pipeline media merging or diverging three-way ball valves are divided into single-acting and double-acting two types, of which single-acting in the case of power failure can be maintained in the control system requirements, double-acting has a larger flow capacity and less resistance.
| Name: | Pneumatic three-way flanged ball valve | Model: | DK66-TF |
| Material: | Stainless Steel | Connection Form : | Flange |
| Structure: | Floating ball core | Nominal diameter : | DN15-DN150 |
| Applicable Media : | Water, oil, Gas, Liquid, steam, powder, anti-corrosive base | Operating Temperature : | Room temperature |
| Standard: | GB | Flow Direction : | Bidirectional |
| Drive type : | Pneumatic | Parts & Accessories : | Actuators |
| Sealing material | PTFE, PPL | Type (Channel Position) : | Tee |
Advantages of pneumatic three-way flange ball valve
Small fluid resistance: the ball valve is the smallest fluid resistance of all valves.
Good sealing performance: the use of elastic material sealing ring, sealing capacity increases with the media pressure.
Reliable stem seal: packing seal is not easy to destroy, sealing capacity increases with the media pressure.
Long service life: PTFE material has good self-lubrication, and the friction loss with the ball is small.
Automatic control: Equipped with valve positioner, the spool opening can be controlled arbitrarily from 0 to 90 degrees by 4-20mA analog signal, realizing proportional adjustment of medium flow, temperature and pressure and other parameters.
Pneumatic three-way flanged ball valve is especially suitable for long-distance natural gas pipeline, with stable transmission, easy to control and does not require power and other advantages, commonly used in gas pipeline line cut-off or direction change, pneumatic three-way flanged ball valve with its high efficiency, safety and reliability, has become an important component of modern industrial automation indispensable. Choose DELCO pneumatic three-way flange ball valve to make your pipeline system more efficient and safer!
The combination and synergy of these components allow control valves to reliably perform fluid control tasks in industrial processes. Different types of control valves may have different component configurations and operating principles.
Why more and more international valve brands choose DELCO for OEM service?
Founded in 2011, DELCO is a global leader in the industrial sector. Our main products include electric actuator valves, pneumatic actuator valves, automation actuators and solenoid valves. For nearly 20 years, we have utilized our products, engineering expertise and industrial automation solutions to solve countless industrial project problems for our customers, including food, beverage, chemical, water treatment, pharmaceutical, natural gas, oil and HVAC projects. We currently have five subsidiaries and more than 50 distributors around the world providing rapid response service.
All DELCO products undergo a 100% in-house design, engineering and manufacturing process led by highly skilled and experienced engineers using Italian and German technology to manufacture high quality, safe, reliable and value for money valves, actuators and solutions. Manufacturing standards can be demonstrated by the certifications obtained over the years.
And with the ISO 9001:2015 Quality Management System certification as well as many other certifications such as: SGS, RoHS, CNEX, TUV, CE, FDA. these certifications prove that DELCO adheres to the highest quality and safety standards worldwide when manufacturing its products.
How to get a quick quote for industrial valves?
If you have questions about valves or want to get a quote, please feel free to contact us, we will reply within 6 hours. Phone +86 159 8960 2972, WhatsApp +86 159 8960 2972 or email marketing sales@delcofluid.com.
DELCO’s quality, competitive prices and excellent service make it the best valve partner to help you grow your business. Customize your valves, we have no minimum order.
