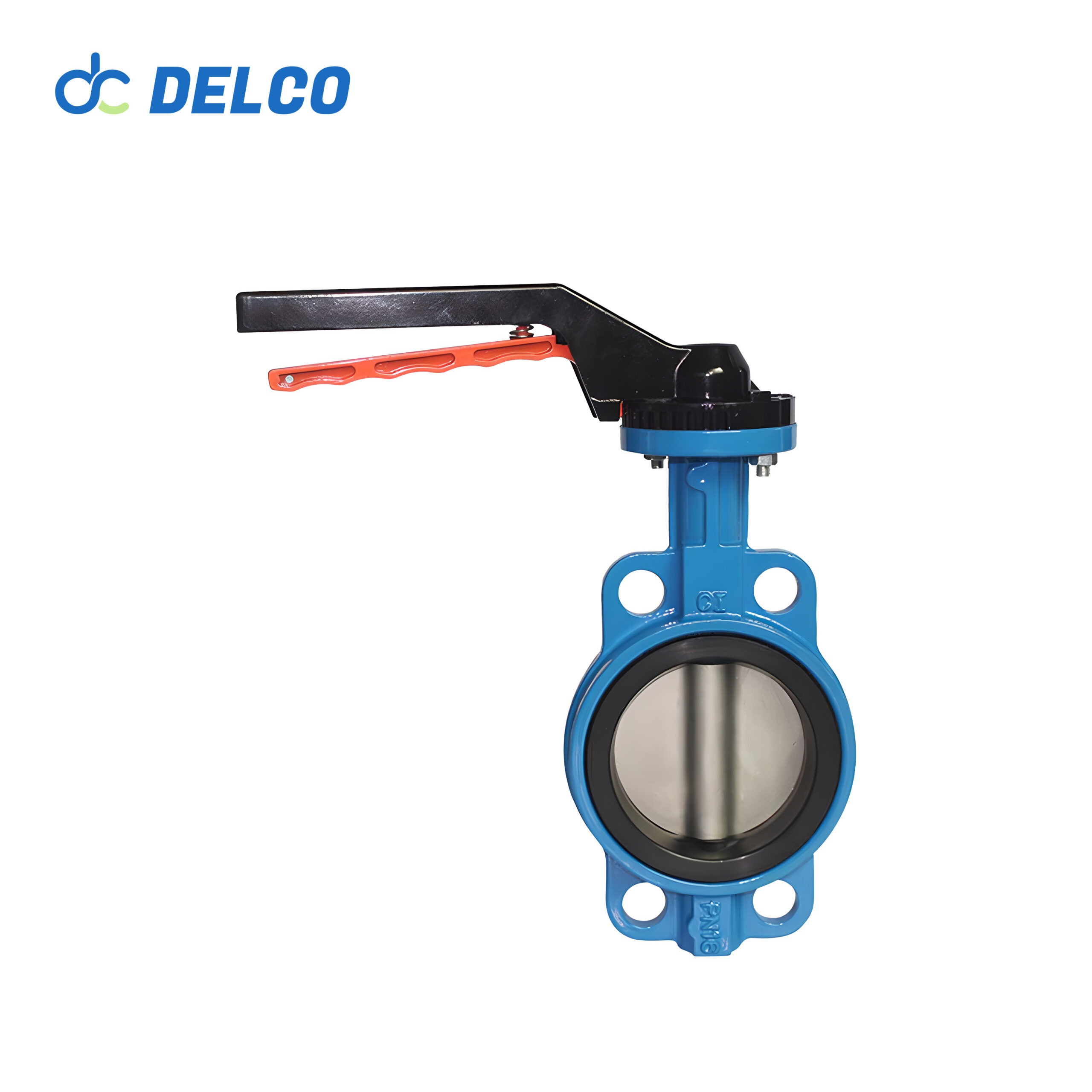

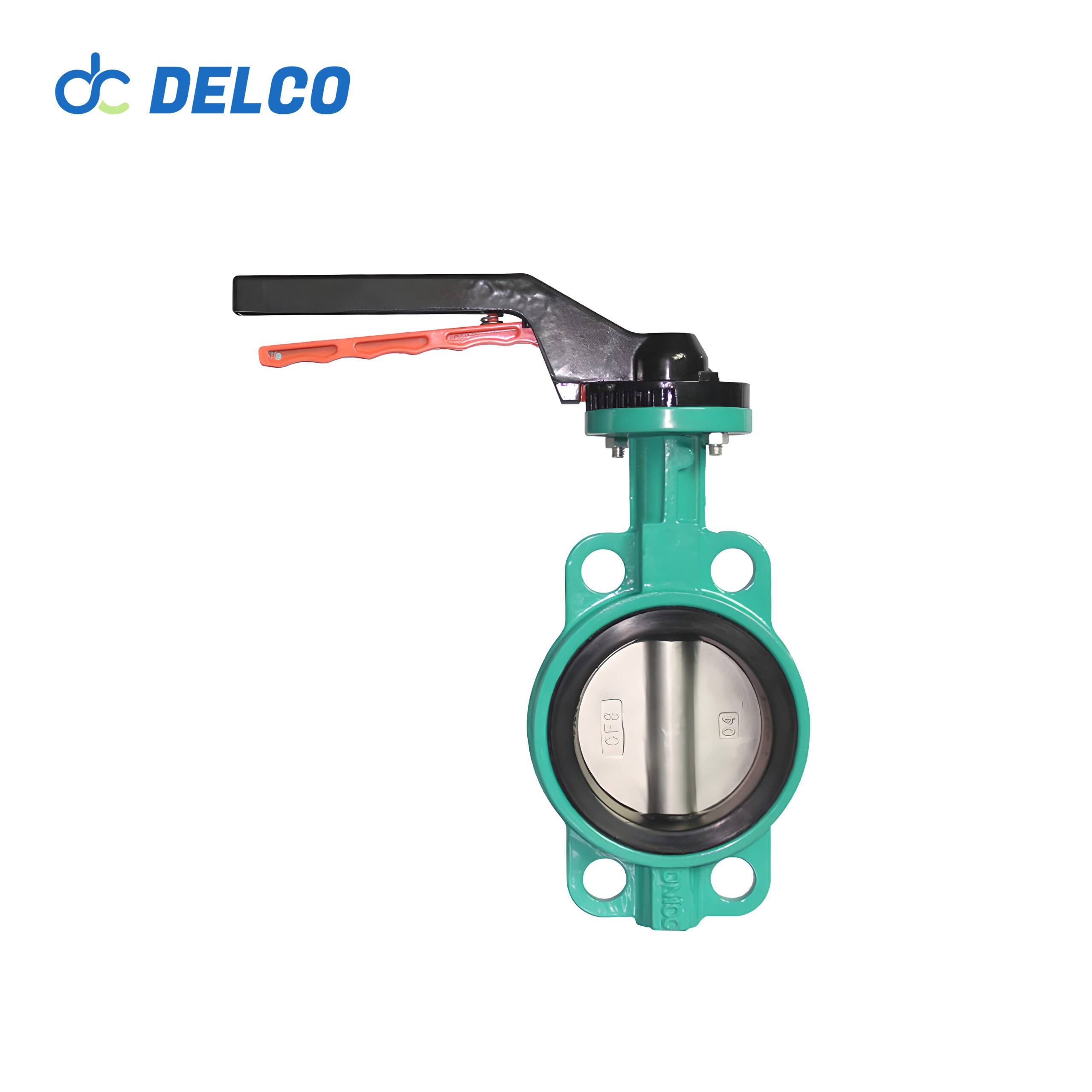

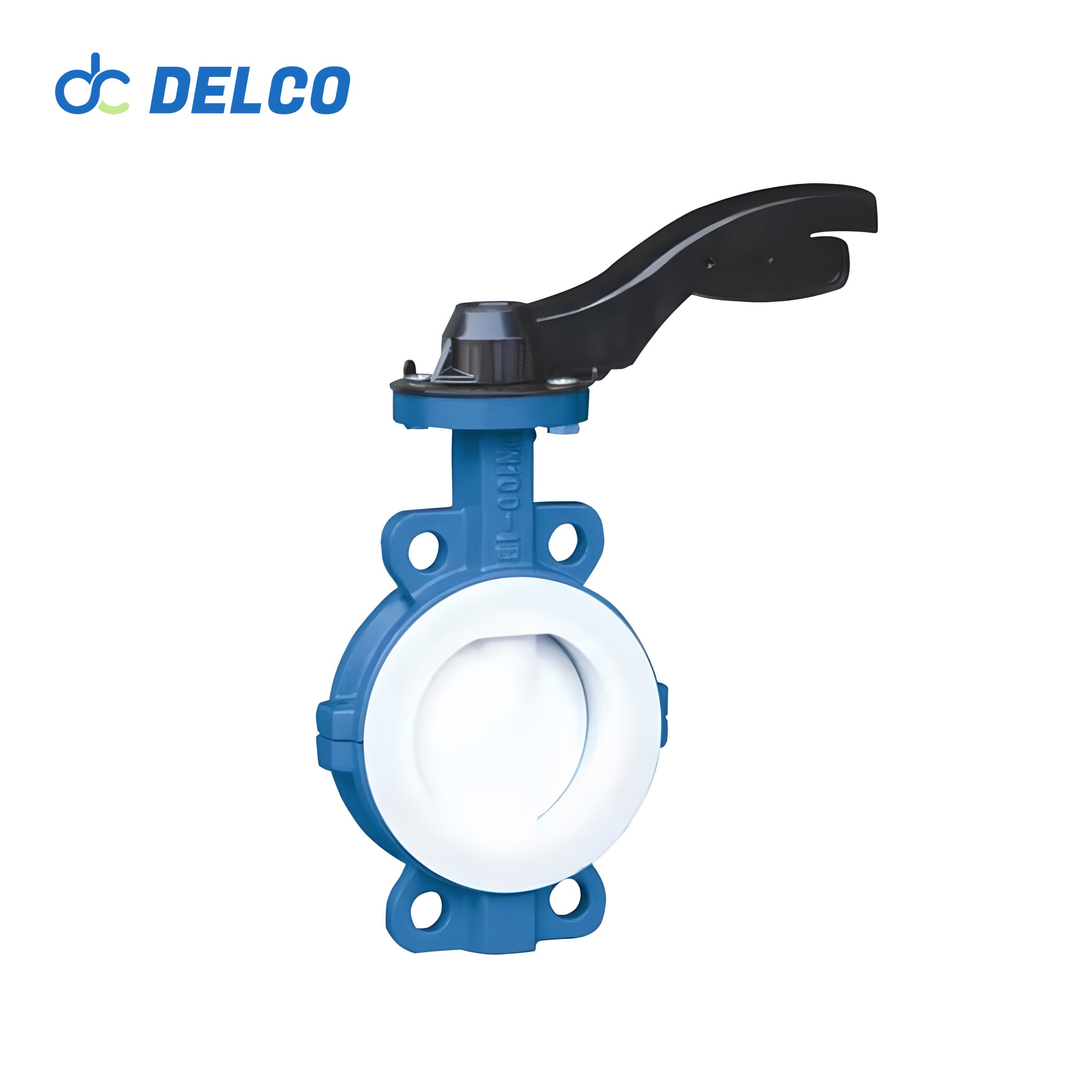

Manual Wafer Type Cast Iron Butterfly Valve With Handle
The product has reasonable structural design, light weight, fast opening and closing speed, and labour-saving operation. The valve flap adopts frame structure with high strength, large flow through area and small flow resistance. Its structure includes ring valve seat, elastic liner and butterfly plate, the valve shaft rotates 90 ° to achieve flow regulation and media cut-off. The valve seat adopts elastic sealing design to ensure reliable sealing. The valve stem is designed as inverted sealing down bearing structure, even if the valve cavity is abnormally pressurised, the valve stem will not be washed out.
The valve adopts double eccentric structure, reliable sealing performance, the more closed the tighter. The overall baking paint treatment can effectively prevent rust and corrosion, replacement of sealing materials can be applied to different media. The valve has a two-way sealing function, the installation is not affected by the medium flow direction and space location, can be installed in any direction.
The design solves the problem of sliding contact friction of the sealing surface of the traditional eccentric butterfly valve at the moment of opening and closing at 0°~10°, and realises the separation of the sealing surface when the butterfly plate is opened and the sealing when it is closed, thus prolonging the service life and optimising the sealing performance.
Model: D71X-Manual Wafer Butterfly Valve
Size Range: 2″ to 16″
Pressure Range: 1.0 to 1.6MPa
Material:Cast Iron, Cast Steel, Ductile Iron, Stainless Steel
Features
- Reasonable structure: Suitable for process parts that do not require high switching frequency, sanitary grade and control accuracy, it is an economical fluid control solution.
- Food quality: Polished stainless steel gate valve plate is suitable for food or pharmaceutical industry.
- Bi-directional sealing: Due to the bi-directional sealing function, the installation is not restricted by the direction of fluid flow and space location, and can be installed in any direction.
- Durable: The sealing material is resistant to aging and low corrosion resistance, which prolongs the service life of the valve and reduces the frequency of replacement.
- Easy to install: Its design allows installation in any position, and maintenance and servicing can be easily adapted to different installation environments.
- Extended service life: The design solves the problem of sliding contact friction of the sealing surface of the traditional eccentric baffle at 0°~10° opening and closing, and realizes the separation of the sealing surface when the baffle is opened and the sealing when it is closed, which extends the service life and optimizes the sealing performance.
Technical Parameters
| Port Size: | 2″ to 16″ | Disc material: | Stainless steel |
| Pressure: | 1.0 to 1.6MPa | Flow Characteristic: | Quick opening feature |
| Warranty： | 12 Moths | Function： | Manual |
| Material of Vale Body： | Cast Iron | Suitable Media | Water, liquid, gas, oil, powder, steam and other media |
Application
1. Food production:
In food production, manual butterfly valves are used for liquid addition, flow regulation and waste discharge. It helps in fluid management and improving production efficiency in food production lines.
2.City Water Supply:
Manual Butterfly Valves are used for flow control and media management in municipal water supply networks to ensure the stable operation of the water supply system and to meet the city’s water supply needs.
3. Agricultural Irrigation Systems:
In agricultural irrigation, manual butterfly valves are used to manage the flow of water to optimize the irrigation effect and enhance the growing conditions of crops.
4. Oil and Gas Pipeline Transportation:
In oil and gas pipeline systems, manual butterfly valves are used to control fluid flow and manage pipelines to ensure efficient and safe oil and gas transportation.
5. Compressed Air Flow Management:
In industrial compressed air systems, manual butterfly valves are used to manage airflow requirements to ensure the stability and efficiency of the gas supply.
6. Heating Hot Water Regulation:
In heating systems, manual butterfly valves are used to regulate hot water flow to control indoor temperature and provide a comfortable indoor environment..
