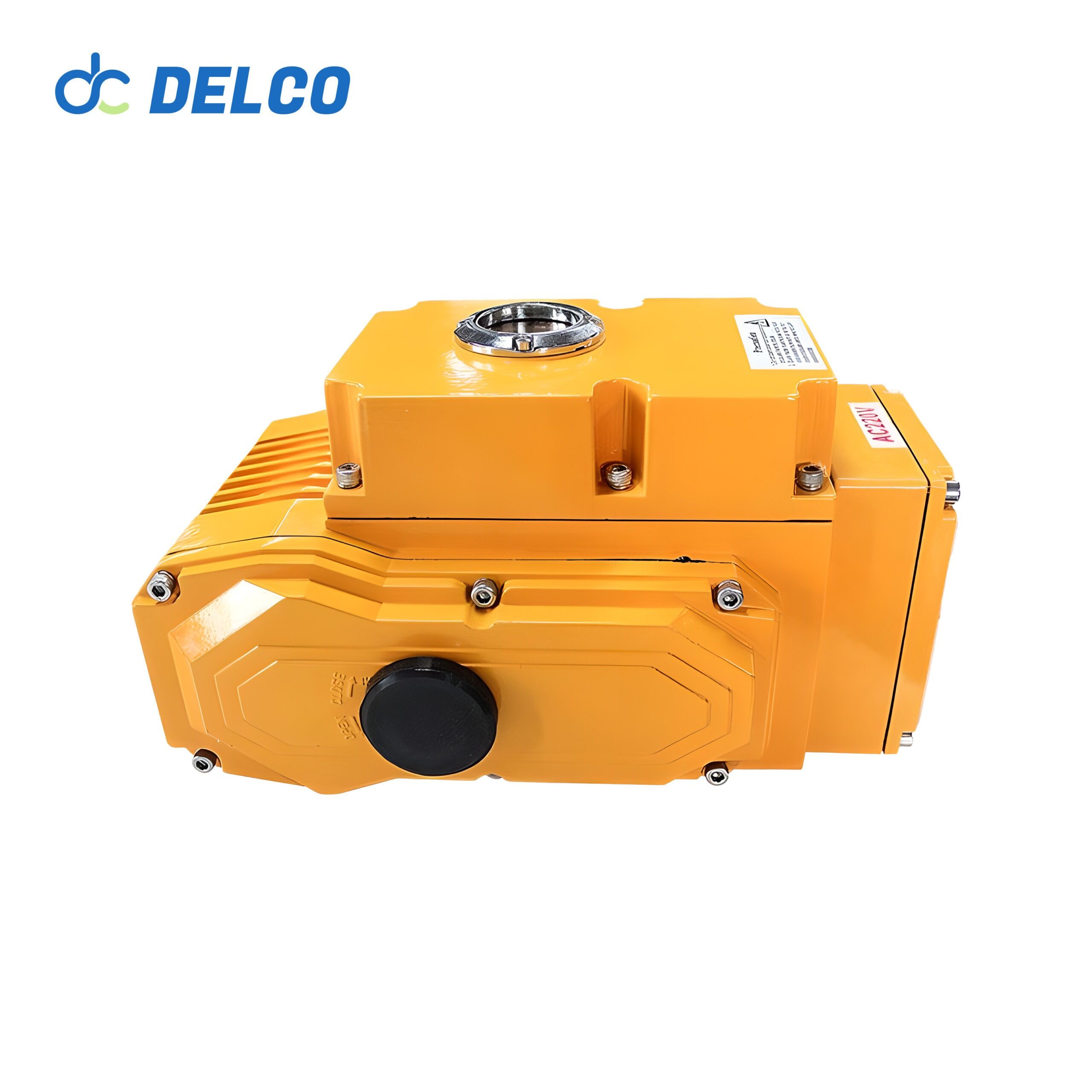

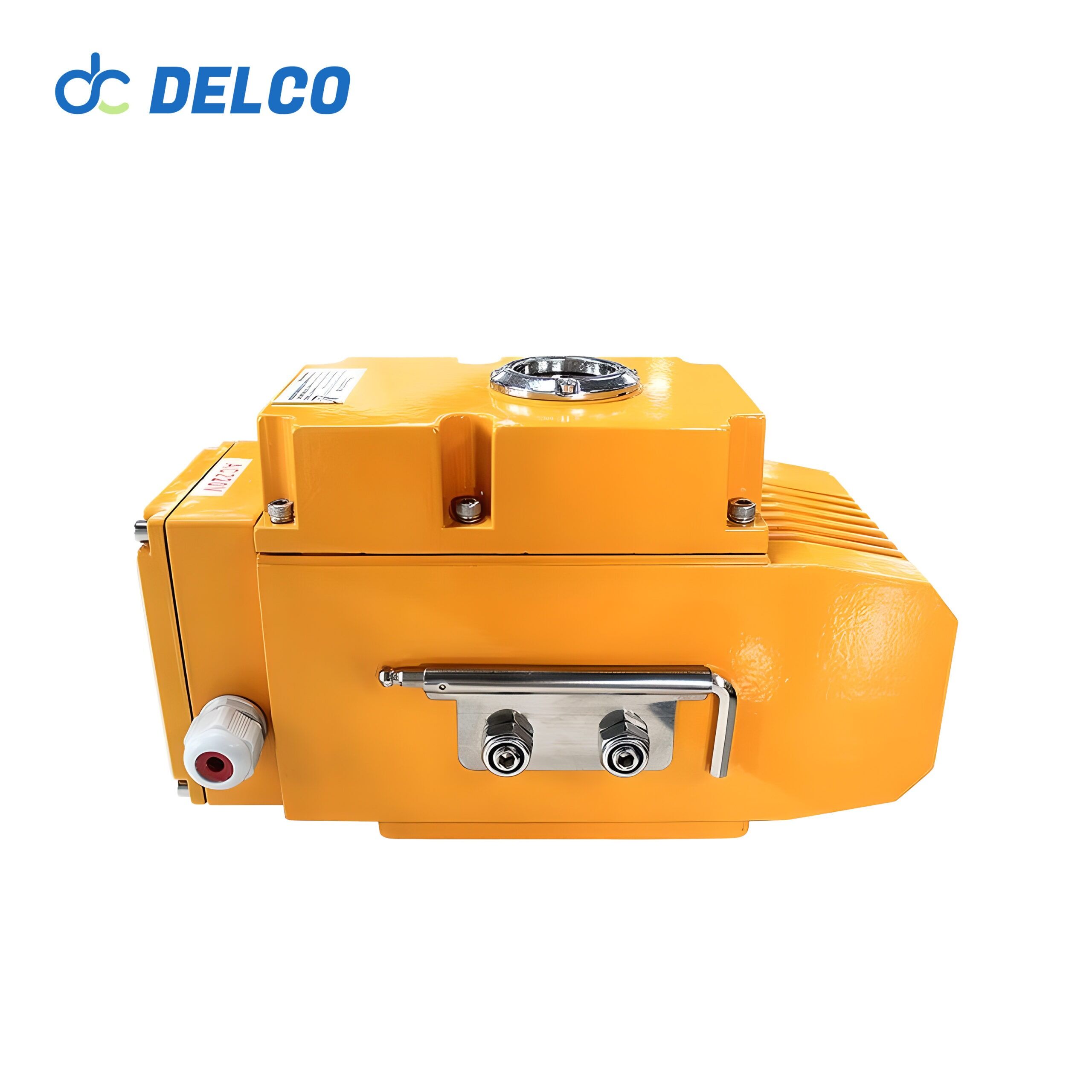

What Is Multi-turn Electric Actuator？
A multi-turn electric actuator is an advanced electromechanical device used in industrial settings to precisely control linear motion, particularly for valves that require multiple rotations to fully open or close. Unlike quarter-turn actuators that rotate valves by 90 degrees, multi-turn actuators are designed to execute numerous rotations along the valve stem, enabling precise positioning of linear movement valves such as gate valves, globe valves, and rising stem ball valves.
Model and main technical parameters
| delespspimcatin | output oqgpue (N.m) 1 | Cuput sped (r/min) | Manual speed rato(Handwheel/ Output) | Moter power (380V) | Rated curent _(380V) | (kg) |
| Z05 | 50 | 18/24 | 1:1 | 0.12/0.18 | 0.45/0.6 | 15.2 |
| 210 | 100 | 18/24 | 1:1 | 0.18/0.25 | 0.6/0.85 | 15.8 |
| Z15 | 150 | 18/24 | 1;1 | 0.25/0.37 | 0.85/1.05 | 16.2 |
| Z20 | 200 | 18/24 | 1:1 | 0.37/0.55 | 1 05/13 | 24.2 |
| _200 | 36/ 48 | 1:1 | _0.55/0.75 | _1.3/17 | _24.2 | |
| Z30 | 300 | 18/24 | 1:1 | 0.55/0.75 | 1.3/1.7 | 25.8 |
| 300 | 36/48 | 1:1 | 0.75/0.85 | 1 7/1.85 | 25.8 | |
| Z45 | 450 | 18/24 | 1:1 | 0.75/0.85 | 1.7/1.85 | 63 |
| 450 | 36/48 | 1:1 | 1.1/1.5 | 2.5/3.2 | 63.2 | |
| Z60 | 600 | 18/24 | 1:1 | 1.1/15 | _2.5/3.2 | 65.2 |
| 600 | 36/48 | 1:1 | 1.5/2.2 | 3.274.5 | 65.2 | |
| Z90 | 900 | 18/24 | 1:1 | 1.5/2.2 | 3.2/4.5 | 67.5 |
| 900 | 36/48 | 1:1 | 2.2/3.0 | 4.576.3 | 68.5 | |
| Z120 | 1200 | 18/24 | 1:1 | 2.2/3.0 | 4.5/6.3 | 69.8 |
| 1200 | 36/48 | 1:1 | 3.0/4.0 | 6.3/8.5 | 69.8 | |
| Z180 | 1800 | 18/24 | 1:21 | 4 | 8.5 | 120 |
| Z250 | 2500 | 18/24 | 121 | 5 | 10.5 | 125 |
| Z350/500 | 3500/5000 | 8 | 1:60 | 5 | 10.5 | 200 |
| Z700/1000 | 7000/ 10000 | 4.5 | 1:107 | 5.5 | 11.2 | 260 |
DELO Valve Multi-Turn Motorized Gate Valve Actuator Features
- Multi-turn Electric Actuator Torque Range: 30N.m or 3000N.m
- Rugged Type 4X weatherproof aluminum alloy enclosure
- Ambient temperature: -20℃~60℃(special order -60℃~80℃)
- Heavy-duty motor with overload protection
- Relative humidity: 95%(when25℃）
- Power supply: general: single-phase 220V, 3 phase 380V(50Hz), long-distance DC24V; Single phase: 110V, 3 phase 415V, 660V(50Hz, 50Hz)
- Working time: 10 minutes for short time(special order can reach 15-60 minutes)
