What Is Explosion-proof Electric Actuator？
An explosion-proof electric actuator is a crucial component in industries with potentially explosive environments. These devices are meticulously engineered to operate safely in areas containing flammable gases, vapors, or combustible dust.
Technical parameters of QT series electric actuator
| Motor Power supply | 220V AC 110V AC 380/440V AC,AC220-660V 50/60Hz,+10% 24V DC/110V DC/220VDC Standard: 220V AC single-phase. Optional: 111 AC. single-phase, 380/440V AC. AC220-660V Three phase, 50/60Hz,士10% 24V DC/110V DC/220V DC | |
| Electric Machinery | Squirrel cage asynchronous motor | |
| Limit Switch | On/off, 1 each | |
| Auxiliary Limit Switch | On/off, 1 each’ | |
| Torque Switch | On/off, 1 each | L DV QT08/15 Except LDV -QT08/15 |
| Trip | 90°+ 10° | 0~27°/ 00~27。optional |
| Stall Protection/operating Temperature | 115⁰C+5ᵒC/97⁰C+5C₋ Buit-in overheatin prtection, 15Ct5*C/off 97Ct5*c | |
| Indicator | Continuous position indication scale | |
| Manual Operation | Mechanical clutch mechanism with handwheel operation | |
| Self Locking Device | Worm gear and worm mechanism provide self-ocking | |
| Mechanical Limit | 2 extermal adjusting bolts | |
| Dryer | 7-10W(110/220V AC) | |
| Wiring Hole | 2个PE3/4″ | |
| Ambient Temperature | -20°C~+70°C | |
| Lubrication | Auminum base grease EP (type) | |
| Material Science | Steel, aluminum alloy. aluminum bronze, polycarbonate | |
| Ambient Humidity | Maximum 90% not more than 95% | non-condensing |
| Shockability | XYZ10g,0.2-34Hz,30Minute | |
| External Coating | Dry powder. epaxy polyester, with super atntcnorosion function | |

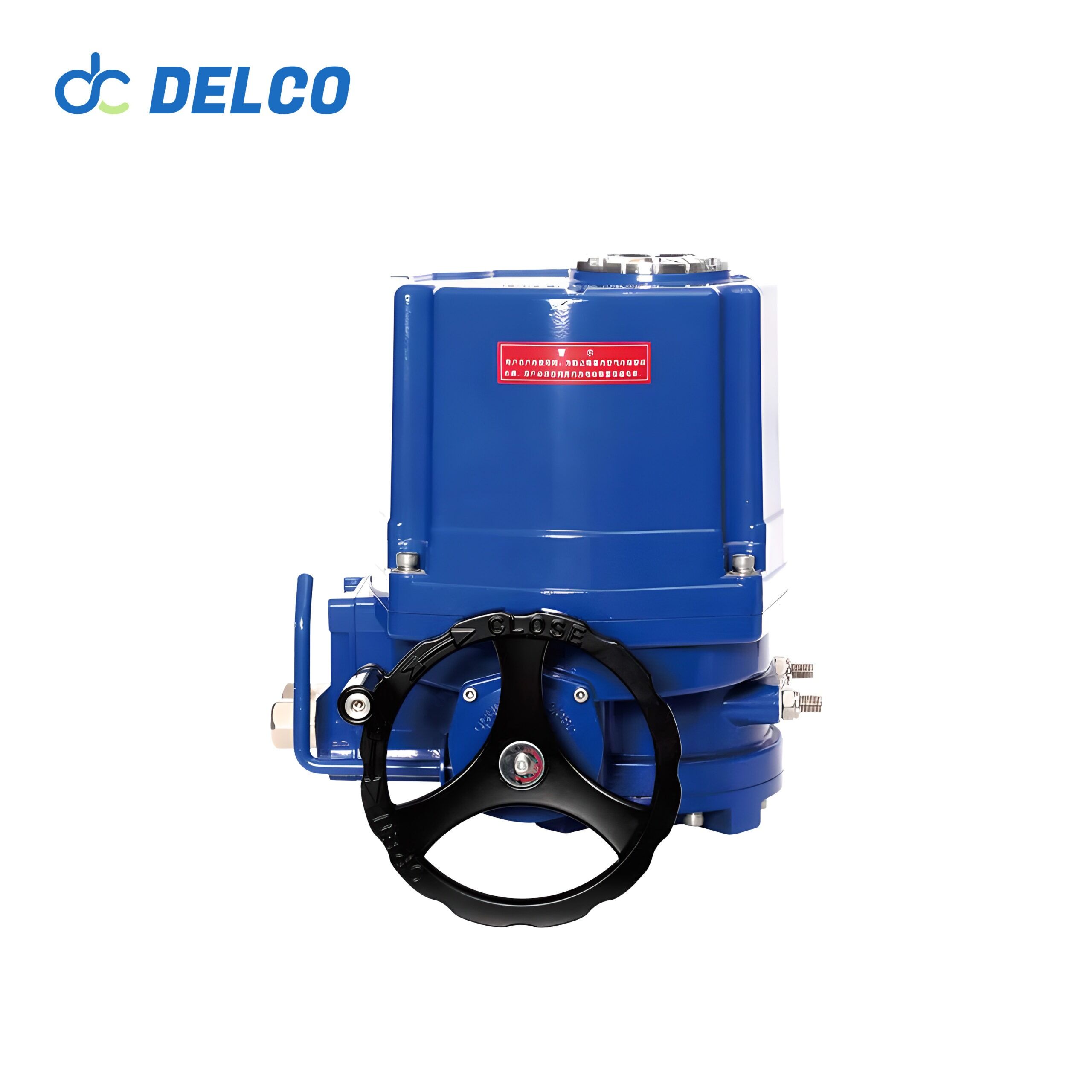

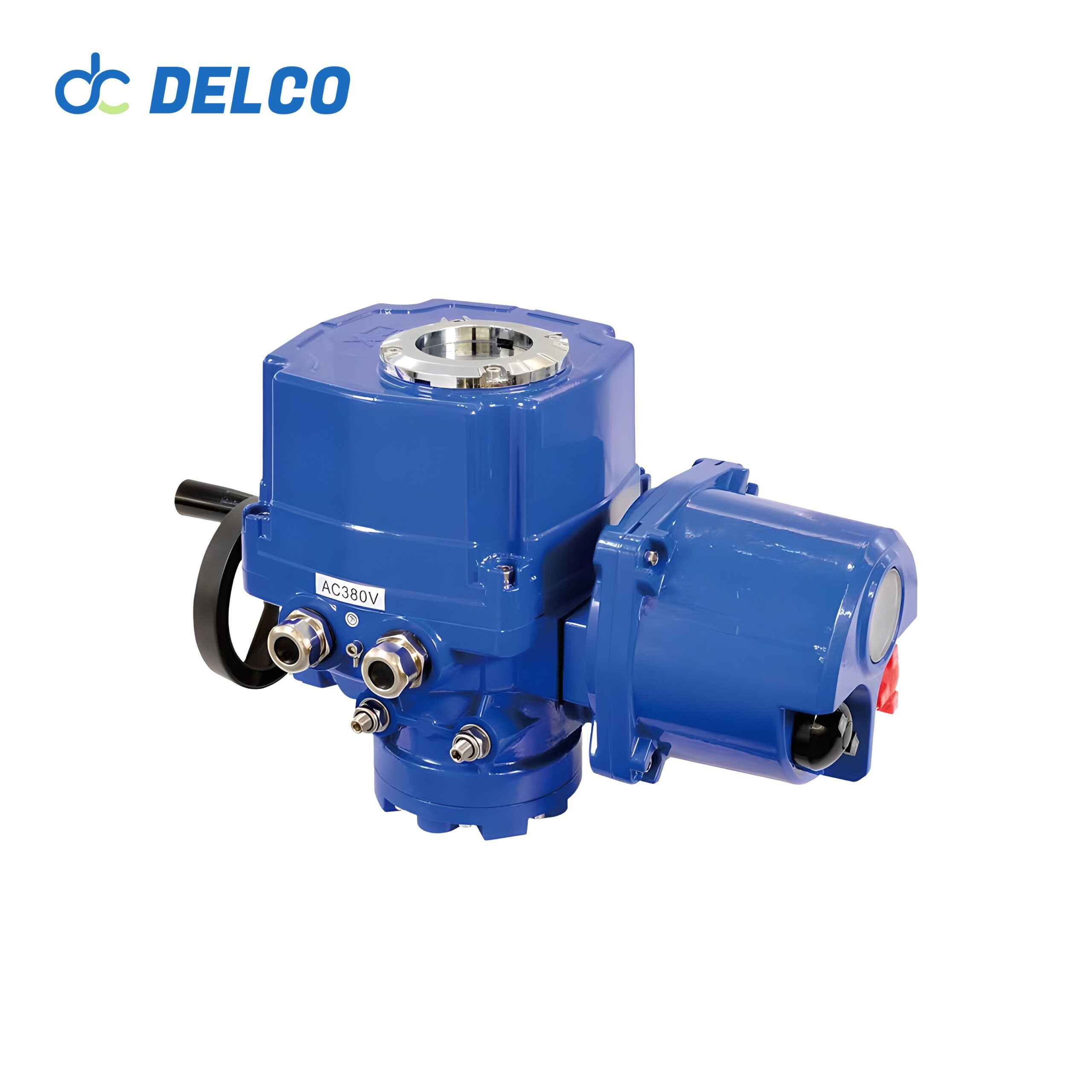

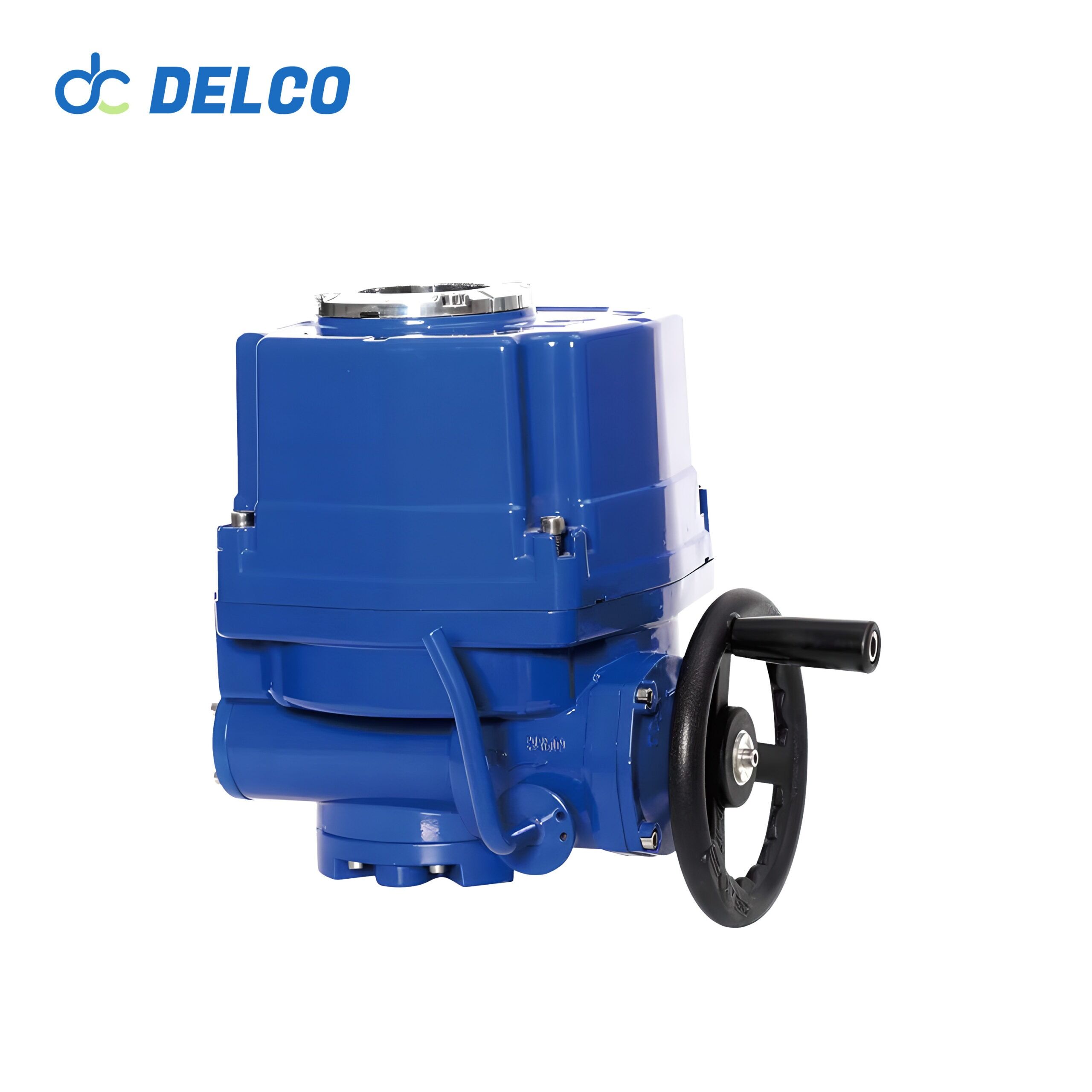

DELO Valve Part-Turn Electric Actuator with hand wheel
QT Ex- Electric Actuator is used to control valves with 0°-270° rotation and other similar products, such as butterfly valves, ball valves ,air throttles, baffle valves, plug valves and shutter valves.
It can be widely applied in petroleu, chemical engineering, water treatment, shipbuilding, paper, power stations, heat supply, building automation, light industry and other industries.
Driven by 380V /220/ 110V AC power and controlled with 4-20mA current signals or 0-10V DC voltage signals, it can make the valve move to the required position for automatic control. The maximum output torque is up to 2,000N.M. (The product has been certified by explosion-proof certification, with guaranteed quality.)
One-time business is not our goal, we pursuit for long-term partner relationships.
We are not just providing simple quotes but experts in selection, calculation, and drawing.
