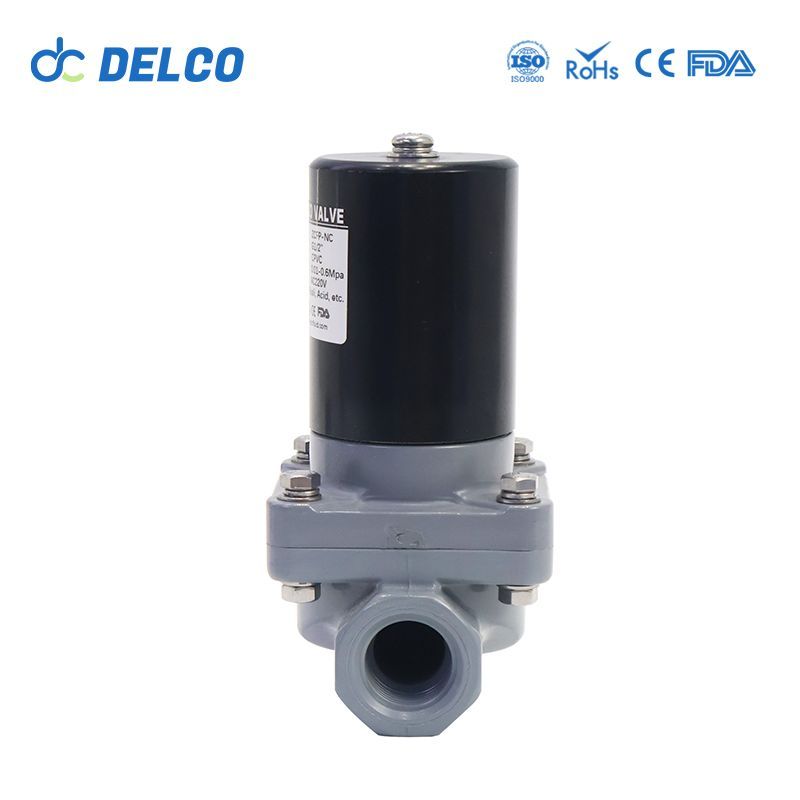

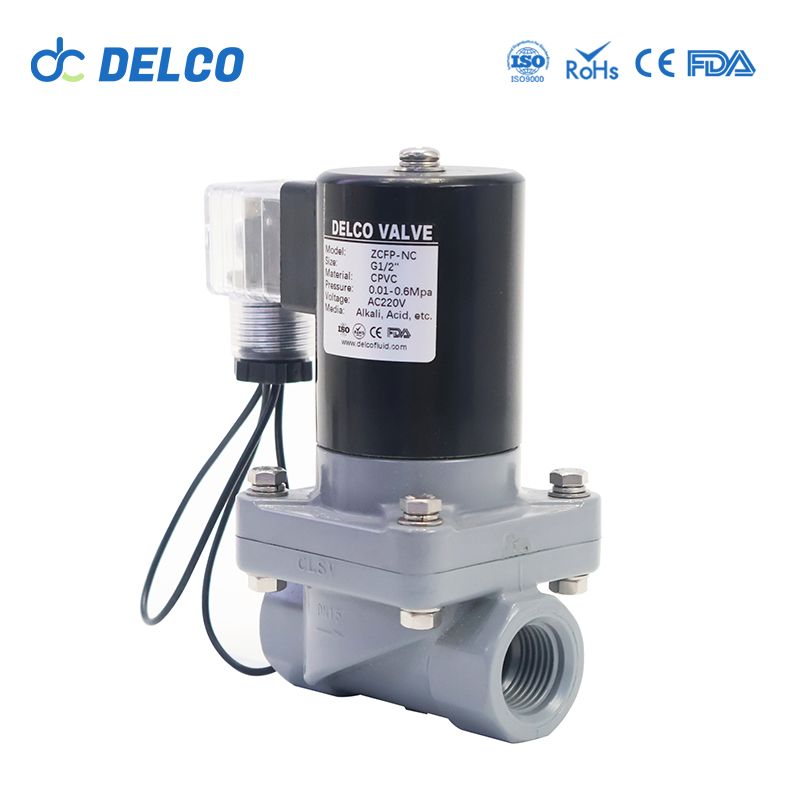

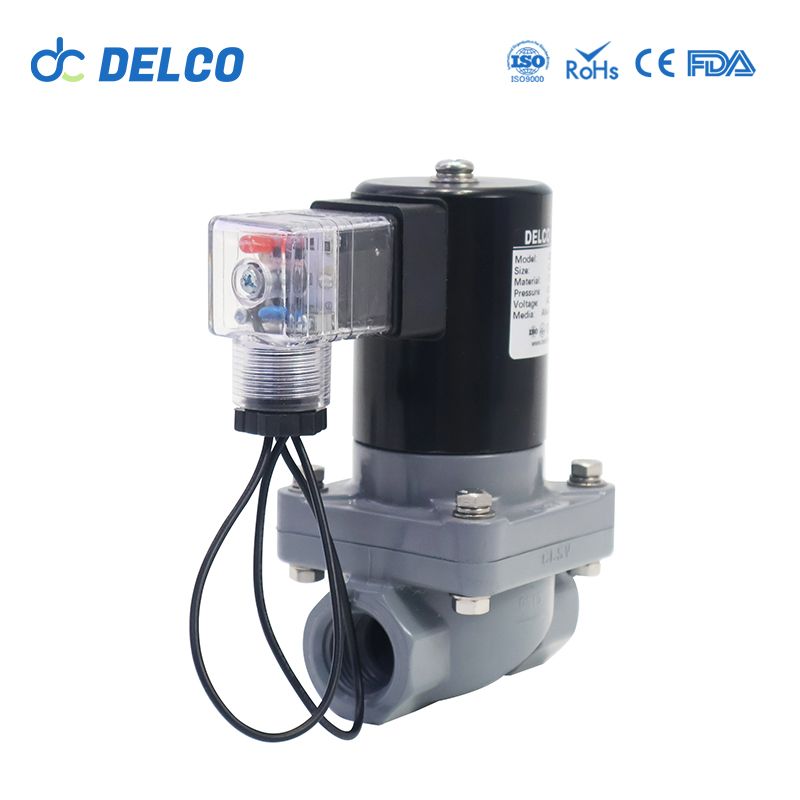

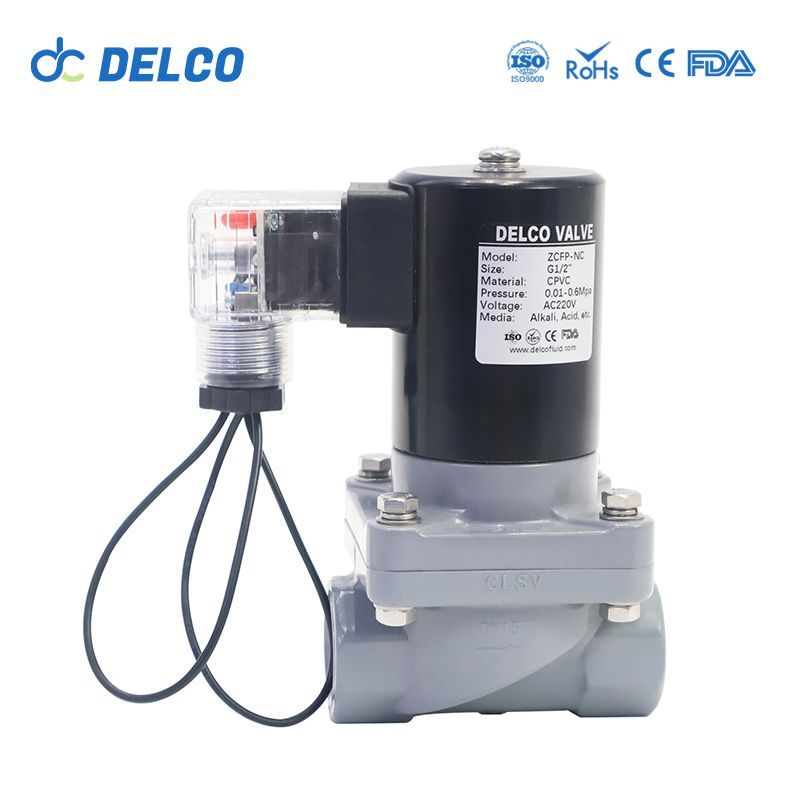

DELCO ZCFP Plastic Anti Corrosion Solenoid Valve
Anti-corrosive solenoid valves are specially designed to resist corrosion with excellent corrosion resistance and reliability for control and regulation of various corrosive media. These valves are manufactured with high-quality corrosion-resistant materials and coatings to ensure stable operation for long periods of time in harsh operating environments. The variety of material choices enables them to meet the needs of different industries, such as chemical, marine and wastewater treatment. Their efficient and stable performance, as well as their convenient maintenance design, make corrosion-resistant solenoid valves an indispensable and important part of fluid control systems, providing a reliable guarantee for the safe operation and continuous stability of the system.
- Model: ZCFP
- Size Range: G1/2”
- Pressure Range: 0.0MPa-0.6MPa
- Material: Plastic, CPVC
Features
- High corrosion resistance: the use of corrosion-resistant materials and coatings to ensure that the valve can resist corrosion for a long time, suitable for harsh environments.
- Multiple material options: according to different working environments and media, anti-corrosion solenoid valves made of different materials can be selected to meet various needs.
- Widely used: widely used in chemical, marine, sewage treatment and other industries, to provide reliable corrosion protection for the system.
- Efficient and stable: anti-corrosion solenoid valves are well designed to work stably and reliably, ensuring the efficient operation of the fluid control system.
- Easy to maintain: the product design takes into account the ease of maintenance, which makes maintenance easier, reduces downtime and ensures continuous and stable operation of the system.
Working Principles:
Normally closed: when the coil is energized, the solenoid core is sucked, the pressure relief hole is opened, the main piston is pushed by the medium pressure, the main valve port is opened and the medium flows. When the coil is de-energized, the main valve port is closed, the media cut-off.
Normally open: when the coil is energized, the solenoid core is suction closed, the pressure relief hole is closed, the main piston is pushed by the medium pressure to close the main valve port, the medium cut-off. When the coil is de-energized, the main valve port opens and the medium flows.
Corrosion Resistant Solenoid Valve Technical Parameter
| Type | Solenoid valve | Nominal diameter | DN15-DN50 |
| Nominal pressure | 0~1.0MPa | Connection | Threaded |
| Structure | Diaphragm | Customized support | OEM |
| Warranty | 12 moths | Sealing Material | NBR, EPDM, FKM , PTFE |
| Media | Oil, Air, Gas, Liquid | Coil Voltage | DC12~24V (±10%), AC110-220V |
Applications:
Anti-corrosion solenoid valve is suitable for a variety of strong acid and alkali gas and liquid as the working medium, and is widely used in medical and pharmaceutical, chemical and chemical, environmental protection or cleaning equipment and other automation control systems.
