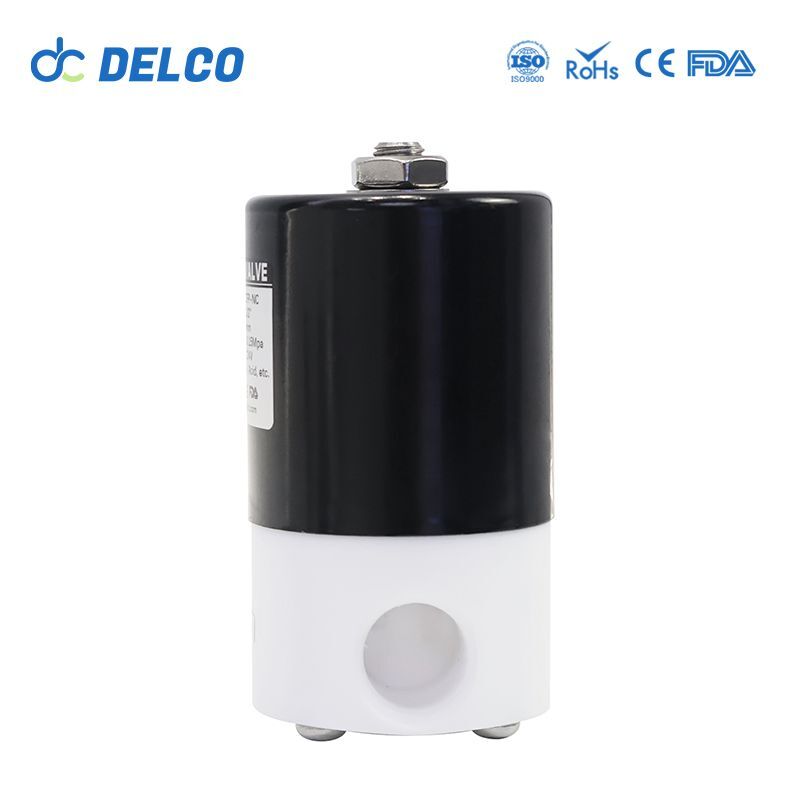

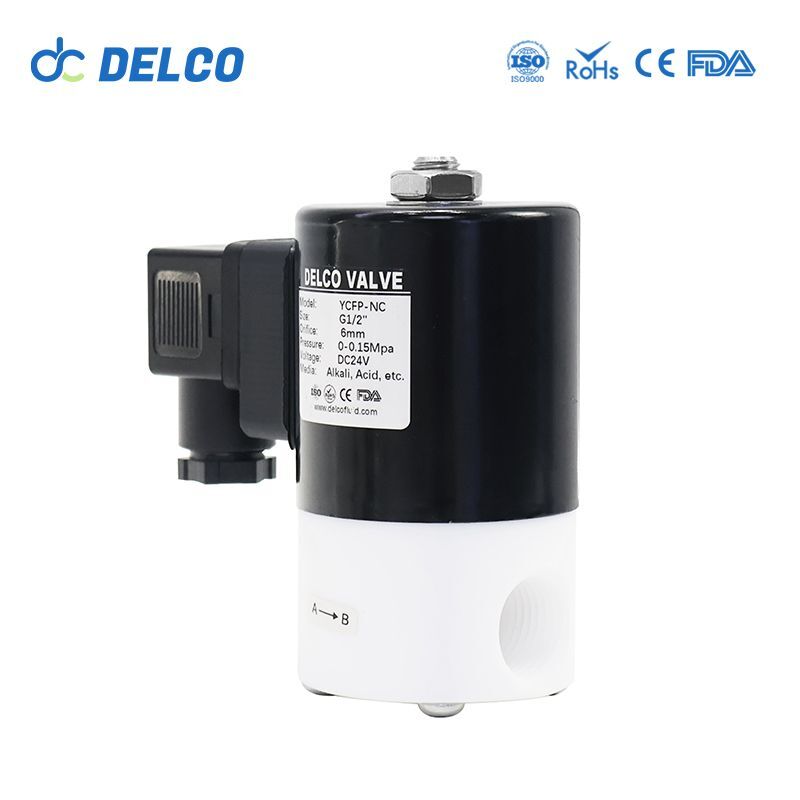

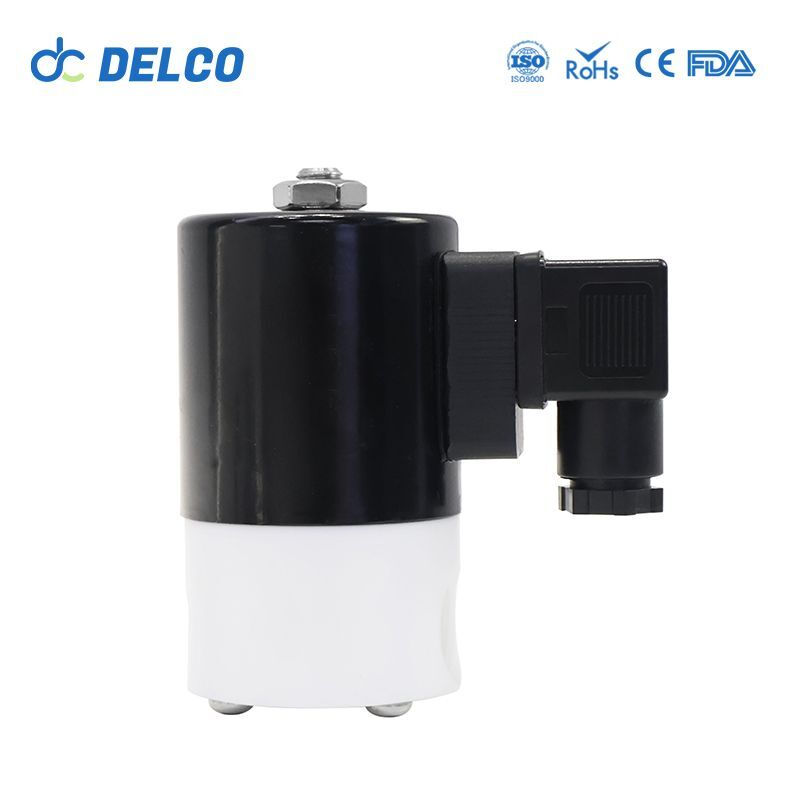

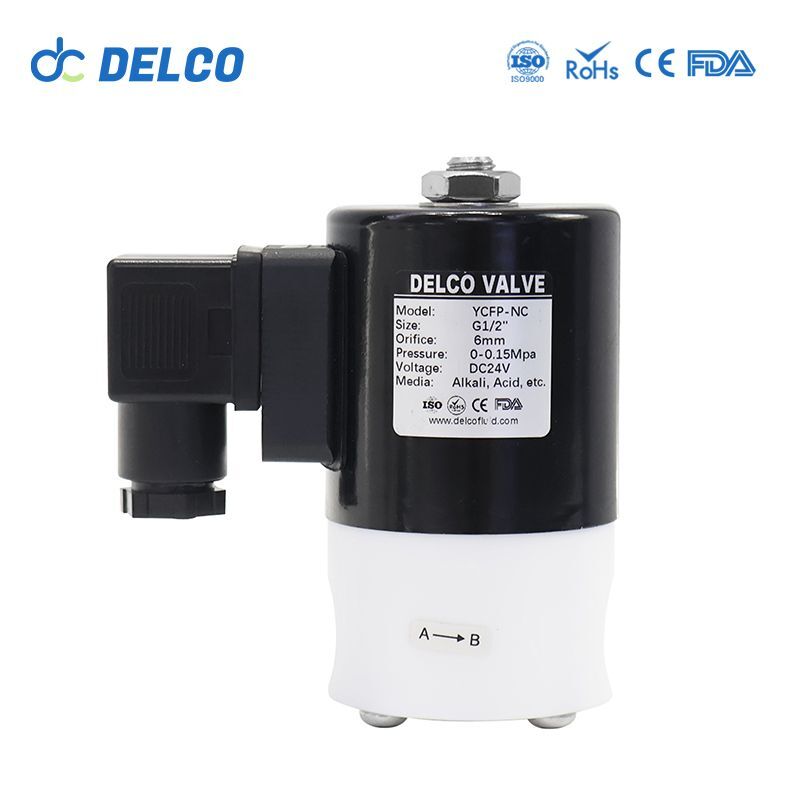

DELCO PTFE Direct Acting Corrosion Resistant Solenoid Valve
DELCO anticorrosive solenoid valve for a variety of normal temperature, normal pressure, low pressure occasions, applicable to a variety of corrosive media or with particulate media use; such as hydrochloric acid, sulfuric acid, a variety of plating solution, a variety of oils, gas, liquefied petroleum gas, aromatic solvents, aliphatic solvents, such as pipeline automation control;
Widely used in agricultural machinery, pharmaceutical equipment, biological medicine, chemical industry, sewage treatment equipment, tank equipment and other pipeline media automation control and other fields.
- Model: YCFP
- Size Range: G1/2”
- Pressure Range: 0.0MPa-0.15MPa
- Material: Plastic
Features
- Corrosion Resistance: These valves are built to resist rust and corrosion, ensuring longevity and reliability in corrosive environments.
- Enhanced Durability: Anticorrosive materials and coatings used in manufacturing contribute to the valve’s extended lifespan and operational efficiency.
- Protection Against Harsh Environments: These valves can function effectively in harsh conditions where corrosion is a common issue, ensuring consistent performance.
- Suitable for Diverse Applications: Anticorrosive solenoid valves find applications in industries such as chemical processing, marine environments, and wastewater treatment where corrosion resistance is crucial.
- Maintenance-Friendly: The design of these valves often simplifies maintenance tasks, reducing downtime and ensuring smooth operation over time.
Working Principles:
Normally closed: when the coil is energized, the solenoid core is sucked, the pressure relief hole is opened, the main piston is pushed by the medium pressure, the main valve port is opened and the medium flows. When the coil is de-energized, the main valve port is closed, the media cut-off.
Normally open: when the coil is energized, the solenoid core is suction closed, the pressure relief hole is closed, the main piston is pushed by the medium pressure to close the main valve port, the medium cut-off. When the coil is de-energized, the main valve port opens and the medium flows.
Corrosion Resistant Solenoid Valve Technical Parameter
| Type | Solenoid valve | Nominal diameter | DN15-DN50 |
| Nominal pressure | 0~1.0MPa | Connection | Threaded |
| Structure | Diaphragm | Customized support | OEM |
| Warranty | 12 moths | Sealing Material | NBR, EPDM, FKM , PTFE |
| Media | Oil, Air, Gas, Liquid | Coil Voltage | DC12~24V (±10%), AC110-220V |
Applications:
Anti-corrosion solenoid valve is suitable for a variety of strong acid and alkali gas and liquid as the working medium, and is widely used in medical and pharmaceutical, chemical and chemical, environmental protection or cleaning equipment and other automation control systems.
