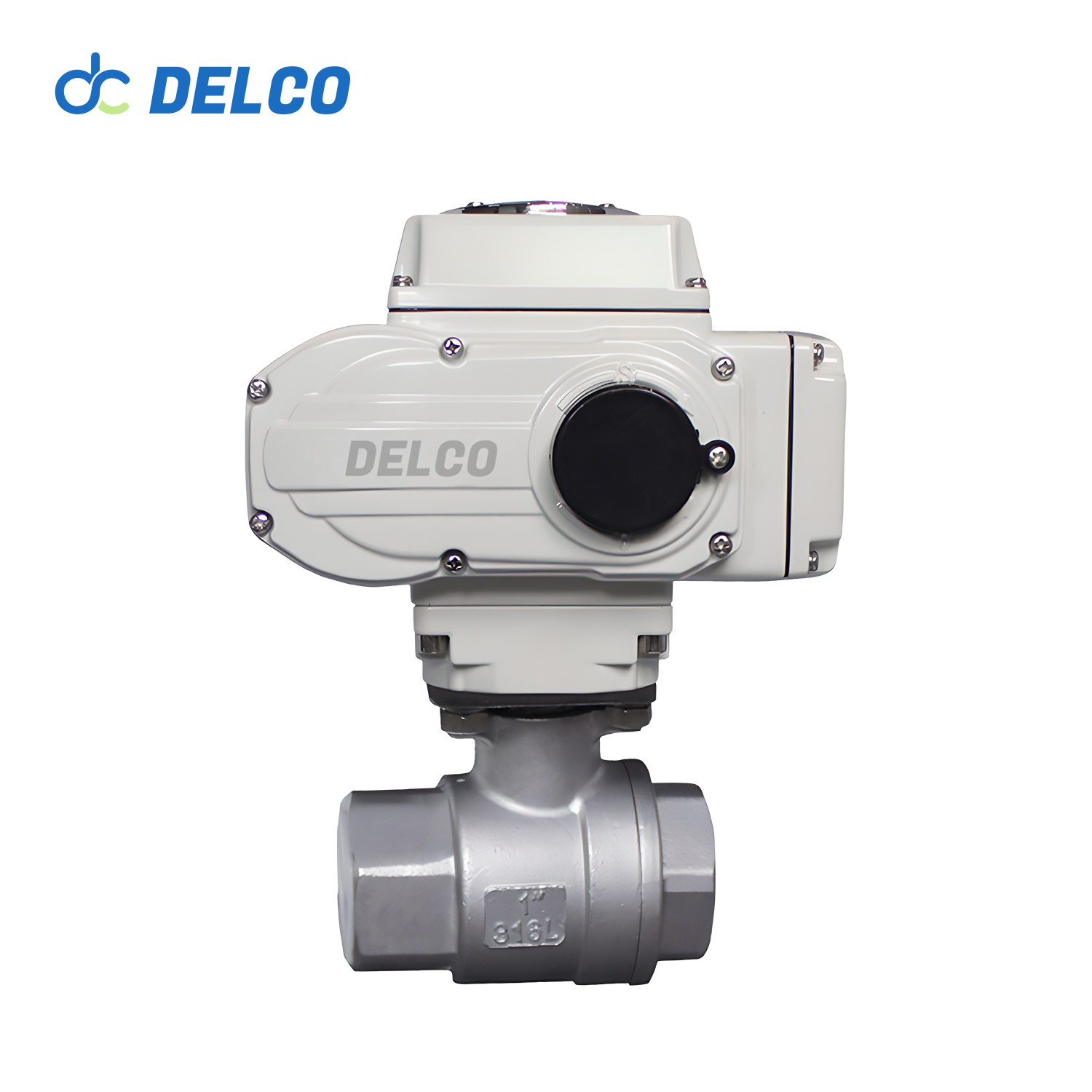

DELCO Female Thread Motorized Actuator Ball Valves-DK55-2PS
DELCO offers a range of motorized ball valves designed for precise fluid control in various applications. Our two-piece, two-way valves are built to GB standards and feature electric actuation for seamless operation. Constructed from durable 316 stainless steel, these valves are equipped with a quarter-turn 90-degree electric actuator, offering torque ranges from 50Nm to 160Nm.
With optional sizes ranging from 1/2 inch to 2 inches, and available in DC-12V, 24V; AC 110V, 220V, 380V 50/60Hz, our valves provide flexibility to suit different needs. Widely used in water treatment and other industries, DELCO has been a trusted electric valve manufacturer for over 20 years, offering a variety of valve types including electric butterfly valves and pneumatic actuated valves.
Model: DK55-2PS
Size Range: 1/4” to 4”
Pressure Range: 1 to 1.6MPa
Material: Stainless Steel 304/316
What Is Female Thread Motorized Actuator Ball Valve？
Female Thread Motorized Actuator Ball Valves are specialized valves designed for precise fluid control in various applications. These valves feature a female thread connection, allowing for easy installation into existing piping systems without the need for additional adapters or fittings. Equipped with a motorized actuator, they offer automated operation, making them ideal for situations where remote or automatic control is required.
The motorized actuator allows for smooth and reliable valve operation, with options for quarter-turn or multi-turn actuation depending on the specific requirements of the application. These valves are commonly used in industries such as HVAC, water treatment, and industrial automation, where precise control over fluid flow is essential for optimal performance.
Data Sheet of Valve：
| Size Range | DN15-DN100 | Seating material | PTFE: -20℃~180℃ |
| PPL: -20℃~150℃ | |||
| Body Material | SS304, SS316, SS316L | Core Material | Stainless Steel |
| End Connection | Female Thread | Stem Material | Stainless Steel |
| Operating Pressure | PN1MPa toPN1.6MPa | Applicable media | Control of water, Air, Gas, Oil, Liquid, Steam |
| Structure | Floating ball core |
Medium Pressure Stainless steel Motorized Valve for Water Features:
- The 2 piece ball size, large diameter, switch easy and convenient
- Consistent product quality and reduction of defective rate
- Reliable maintenance, sealing surface and sphere often closed state, not easy to be medium erosion
- Significant cost reduction versus competitors
- Excellent strength and toughness, easy installation
- It can be applied to water, gas, steam, oil, nitric acid, acetic acid and other media
- Cheaper and cost-efficient actuator valve for your business.
Electric Actuator:
ON/OFF Type Electric Actuator: Featuring a 90-degree rotation, this actuator offers AC/DC power supply, signal control, and manual override capabilities. With high torque of up to 4000Nm, it ensures reliable performance in demanding environments.
Modulating Type Electric Actuator: Adjust the open/close angle smoothly from 0 to 90 degrees with this actuator. Equipped with AC/DC power supply, signal control, and manual override, it delivers precise control and high torque of up to 4000Nm.
Intelligent Type Electric Actuator: Take control with ease using the intelligent actuator, allowing you to adjust the open/close angle with precision. Featuring an LED display screen for convenient monitoring, it offers AC/DC power supply, signal control, manual override, and high torque of up to 4000Nm.”
| Product Model: | DK55-2PS | Housing Material: | Aluminum alloy |
| Waterproof Level: | IP67 | Motor power supply: | 24/110/220/380V AC±10％，24/110/220VDC 50/60HZ±10％ |
| Motor: | Squirrel cage asynchronous motor | Itinerary: | 90°-270±10° (above 90° in advance) |
| Fail-safe: | Built-in thermal protection on: 120°C±5°C | Operating Temperature: | 97℃±15℃ |
| Indicator: | Continuous position indication | Manual operation: | Mechanical handles |
| Self-locking device: | The turbine and worm mechanism provide self-locking | Mechanical Limit: | 2 external adjustments |
| Terminal Holes: | M18 | Ambient Temperature: | -20℃-70℃ |
| Lubrication: | Aluminum-based grease EP type | Material: | Steel, aluminum alloy, aluminum bronze, polycarbonate |
| Ambient Humidity: | Up to 90% | Ingress Protection: | IP65； IP67； IP68 |
| Explosion-proof grade: | Exd II BT4； Exd II CT6 | Ambient Temperature: | -25℃-55℃ |
| Ambient Humidity: | 10~90%RH | Seismic Performance: | X Y Z 10 grams, 0.2-34HZ 30 minutes |
| Coating: | Dry powder, epoxy polyester | Manufacturing Standards: | GB/JB/HG/HG/ANSI/API/JIS/DIN/OTHER STANDARDS CUSTOMIZED |
