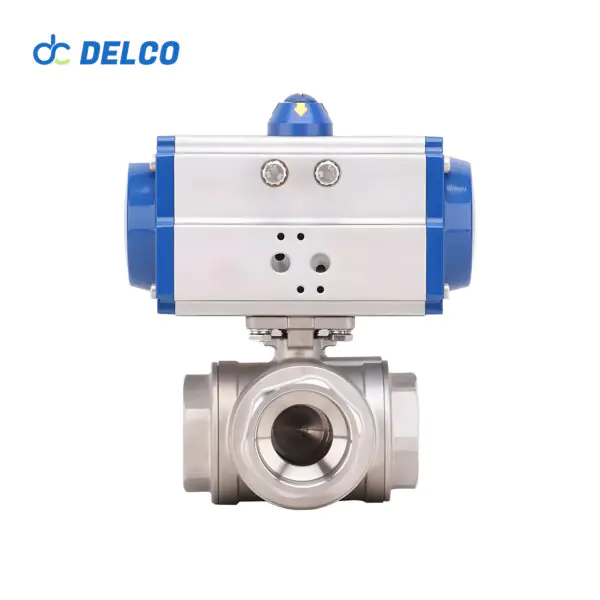

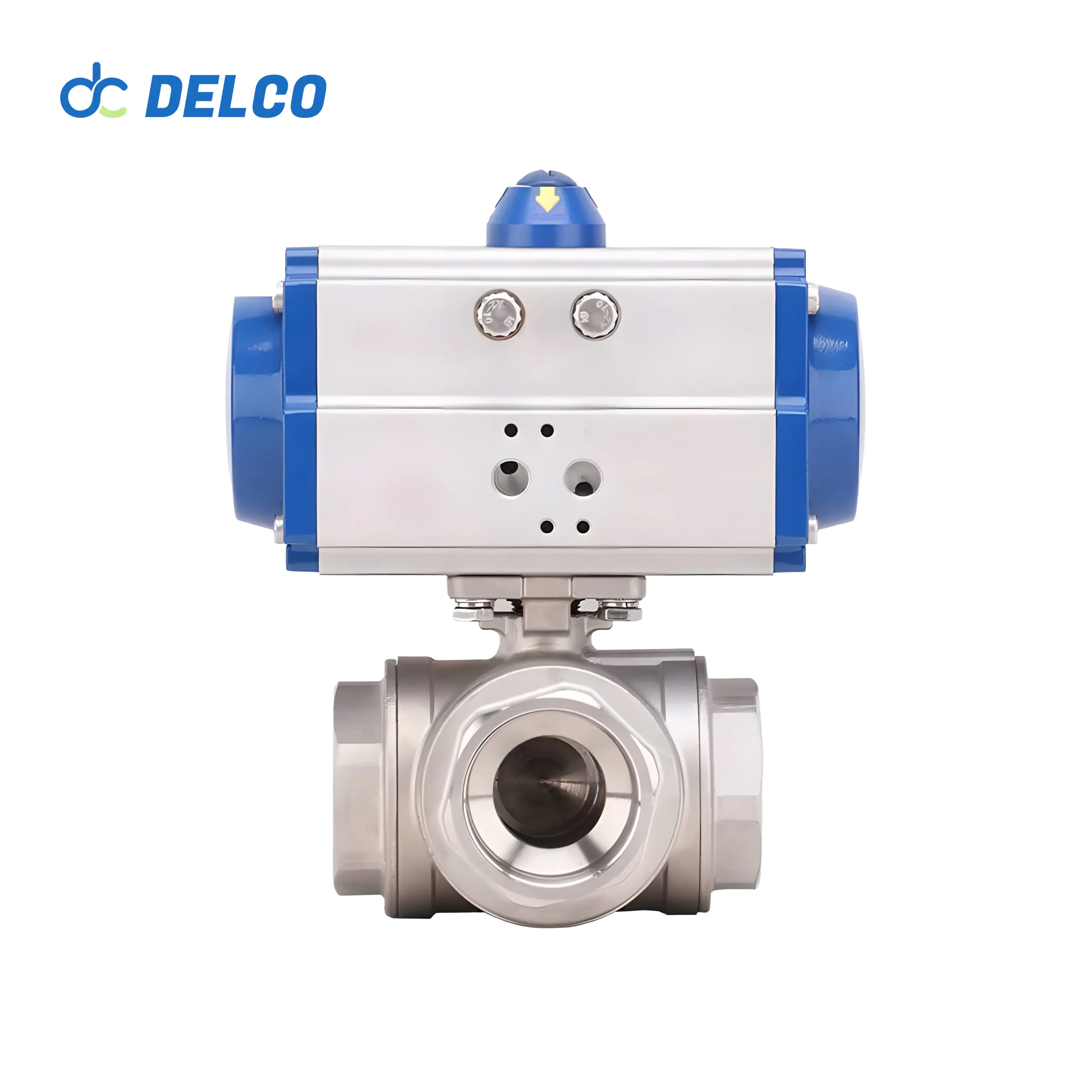

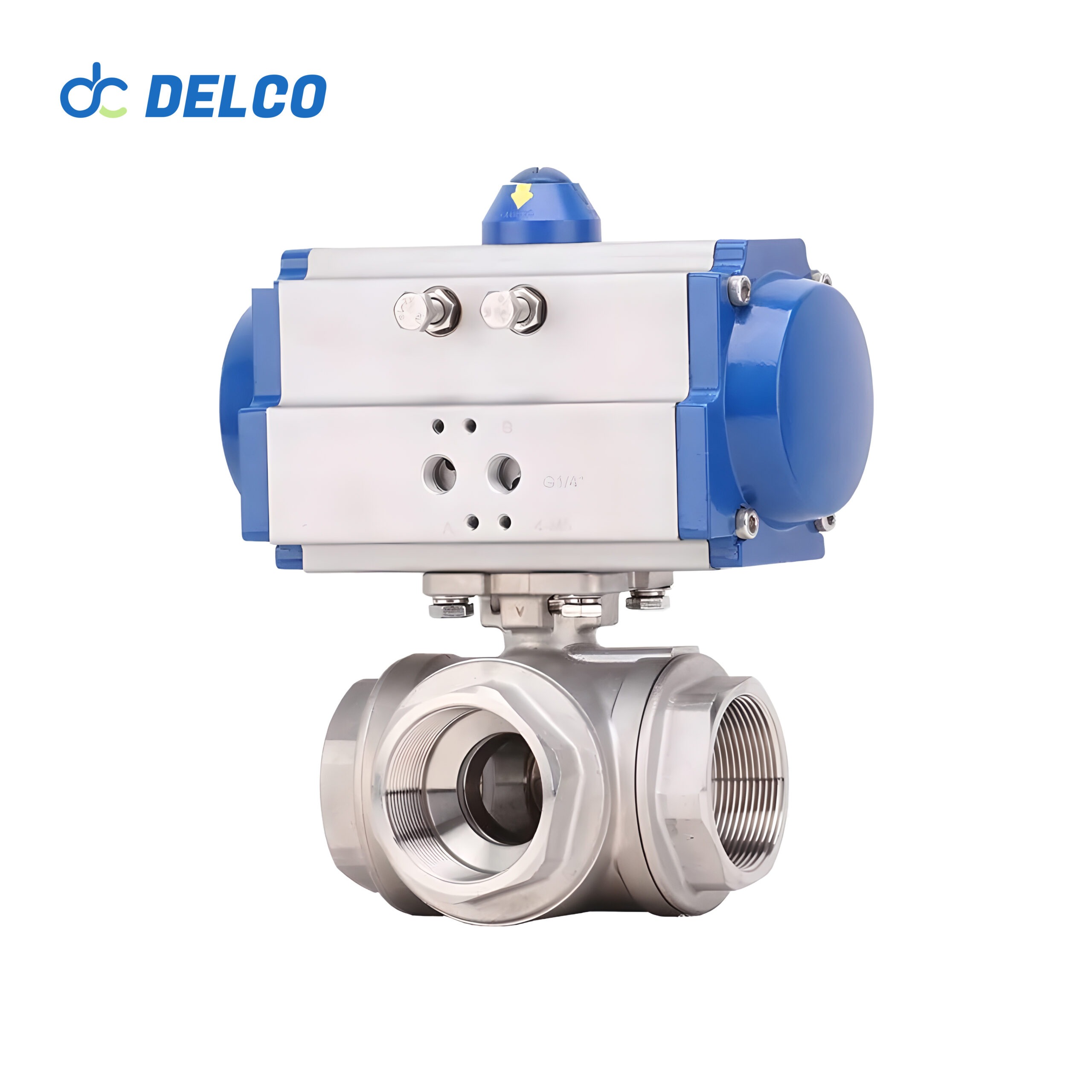

4 Way Thread Pneumatic Actuator Ball Valves-DK66-4T
The 4-way thread pneumatic actuator ball valve is a precision-engineered component designed for fluid control applications requiring intricate directional adjustments. Unlike traditional ball valves, this specialized valve offers four distinct pathways for fluid flow regulation, providing enhanced flexibility and control in diverse industrial settings. Equipped with a pneumatic actuator, it ensures efficient and precise operation, allowing for swift response times and accurate fluid control.
4 Way Pneumatic Actuator Threaded Ball Valves is widely used in water supply, petrochemical, metallurgy, mining, textile, energy, paper, food, steel and other pipeline systems to switch the flow direction of media and to separate or mix the media; Stainless Steel and Plastic material are available. Connection Type: Threaded, Flange, Tri Clamp and Welding. Good sealing performance: no leakage sealing can be realized by elastic deformation of PTFE.
- Model: Pneumatic Ball Valves
- Size Range: 1/2″ to 2″
- Pressure Range: 1.0 to 1.6MPa
- Material: Stainless Steel 304/316
What Is The 4 Way Thread Pneumatic Actuator Ball Valve？
The 4-way thread pneumatic actuator ball valve is an advanced component meticulously engineered for precise fluid control in industrial systems. Unlike conventional valves, this specialized valve features four distinct pathways, offering unparalleled versatility in regulating fluid flow directions. Employing a pneumatic actuator, ensures swift and accurate operation, facilitating precise adjustments even in complex applications.
Constructed with high-quality materials, it exhibits robustness and durability, withstanding challenging operating conditions for prolonged service life. Threaded connections streamline installation and maintenance processes, minimizing downtime and optimizing system efficiency. In essence, the 4-way thread pneumatic actuator ball valve represents a pinnacle of engineering innovation, providing comprehensive solutions for intricate fluid control requirements in various industrial settings.
Benefits Of 4 Way Thread Pneumatic Actuator Ball Valves
The benefits of 4-way thread pneumatic actuator ball valves are multifaceted, offering a range of advantages that set them apart as highly efficient components in fluid control systems.
Firstly, their unparalleled versatility allows for precise regulation of fluid flow along four distinct pathways, providing unparalleled flexibility in managing complex flow patterns and system configurations. This adaptability ensures optimized fluid distribution, leading to improved system performance and resource utilization.
Furthermore, equipped with pneumatic actuators, these valves offer responsive and accurate control over fluid flow. The actuators enable quick adjustments to flow rates and directions, facilitating fine-tuning of system parameters to meet specific operational requirements with precision.
4 Way Thread Pneumatic Actuator Ball Valves technical Parameter：
| Body | Size range | Body material | End connection | Operating pressure | Structure |
| DN15~DN50 | SS304, SS316, SS316L | Female thread | PN1.0~1.6MPa | Floating ball core | |
| Valve components | Sealing material | Core material | Stem material | Applicable media | |
| PTFE, PPL | Stainless steel | Stainless steel | Water, air, oil, gas, etc | ||
Features Of 4 Way Thread Pneumatic Actuator Ball Valves
Four-Way Design: Offers four distinct pathways for fluid flow regulation, providing enhanced flexibility in fluid distribution.
Pneumatic Actuator: Enables efficient and precise operation, ensuring rapid response times and accurate fluid control.
Robust Construction: Constructed from high-quality materials, ensuring durability and reliability in challenging environments.
Threaded Connections: Facilitate easy installation and maintenance, minimizing downtime and enhancing productivity.
In summary, the 4-way thread pneumatic actuator ball valve combines versatility, efficiency, and reliability, making it an ideal choice for fluid control applications requiring intricate directional adjustments.
Technical Parameters of Valves Actuator
Air source processor: The pneumatic triplet, a vital accessory for pneumatic valves, combines filtering, pressure reduction, and lubrication functions. The pressure reducing valve adjusts inlet pressure to a stable outlet pressure, utilizing the medium’s energy. In two-piece assemblies, it couples with a filter for compressed instrument air filtering. In three-piece configurations, it adds lubrication to the air, ensuring efficient operation.
Pneumatic solenoid valve: The pneumatic solenoid valve, also known as a directional control valve, is a vital component for regulating the opening and closing of pneumatic valves. It functions by magnetizing and demagnetizing, which directs the gas flow based on voltage signals. Commonly employed to manage gas source and circuit flow, these valves offer precise control over valve operations through voltage signals.
Limit switch: The valve limit switch, also called a travel switch, is a critical field instrument in automatic control systems. It detects the valve’s status and outputs signals for open or closed positions. This switch is essential for confirming and executing subsequent programs by programmers. Additionally, it serves as a vital component for valve interlock protection and remote alarm indication within the system. It effectively indicates and provides feedback on mechanical equipment’s movement limit position.
Valve positioner: The valve positioner is a crucial component of pneumatic control valves, enabling precise control over valve positioning. It utilizes the valve stem displacement signal as input feedback and the controller output signal as the control signal. By comparing these signals, any deviation triggers adjustments to the actuator output signal, ensuring a direct correspondence between valve stem displacement and controller output.
Manual device: The manual device is an essential component that complements the pneumatic actuator assembly. It serves to facilitate manual or pneumatic operation for butterfly valves and ball valves with a 90° opening. This mechanism is crucial for ensuring versatility and flexibility in valve operation, allowing for both manual and automated control as needed.
