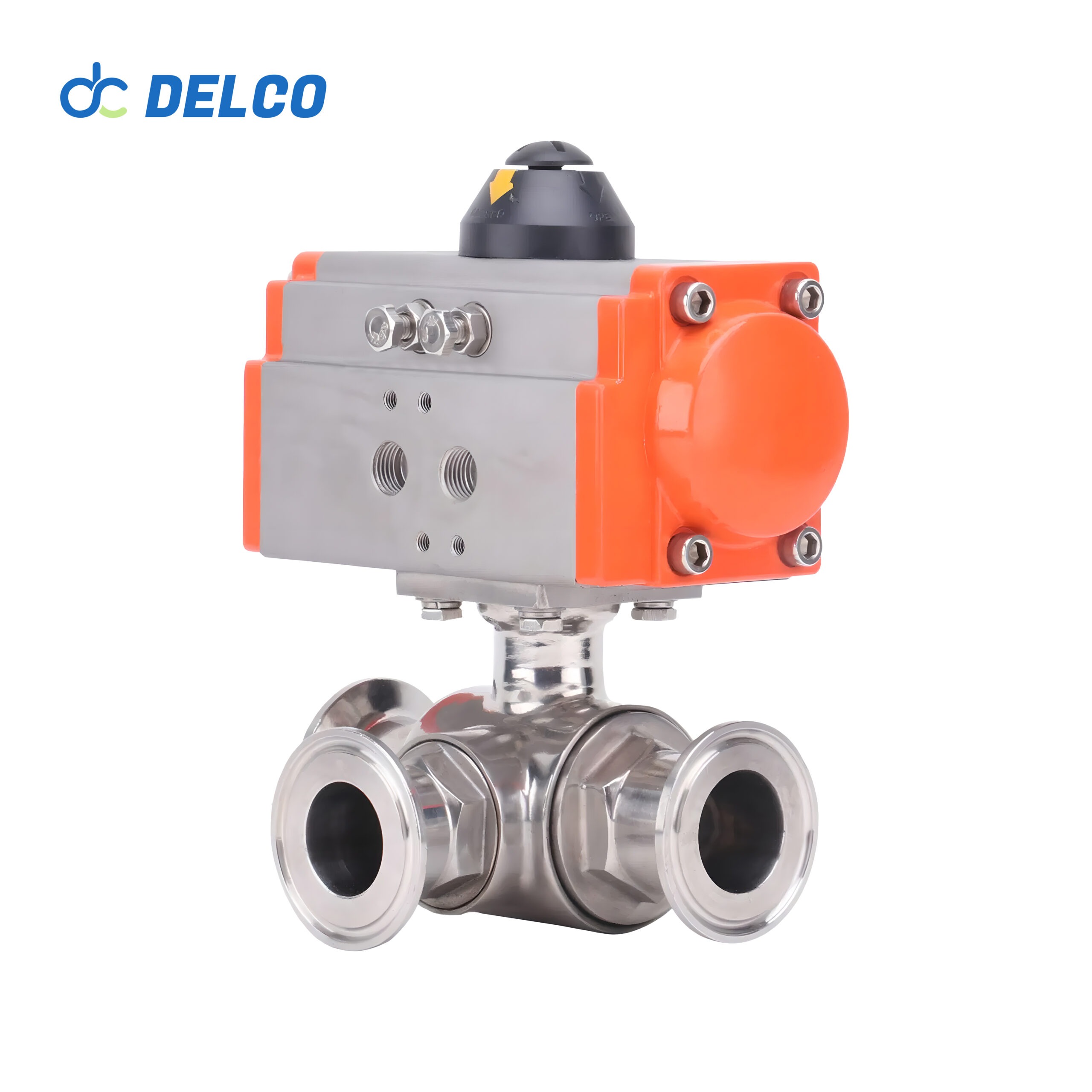

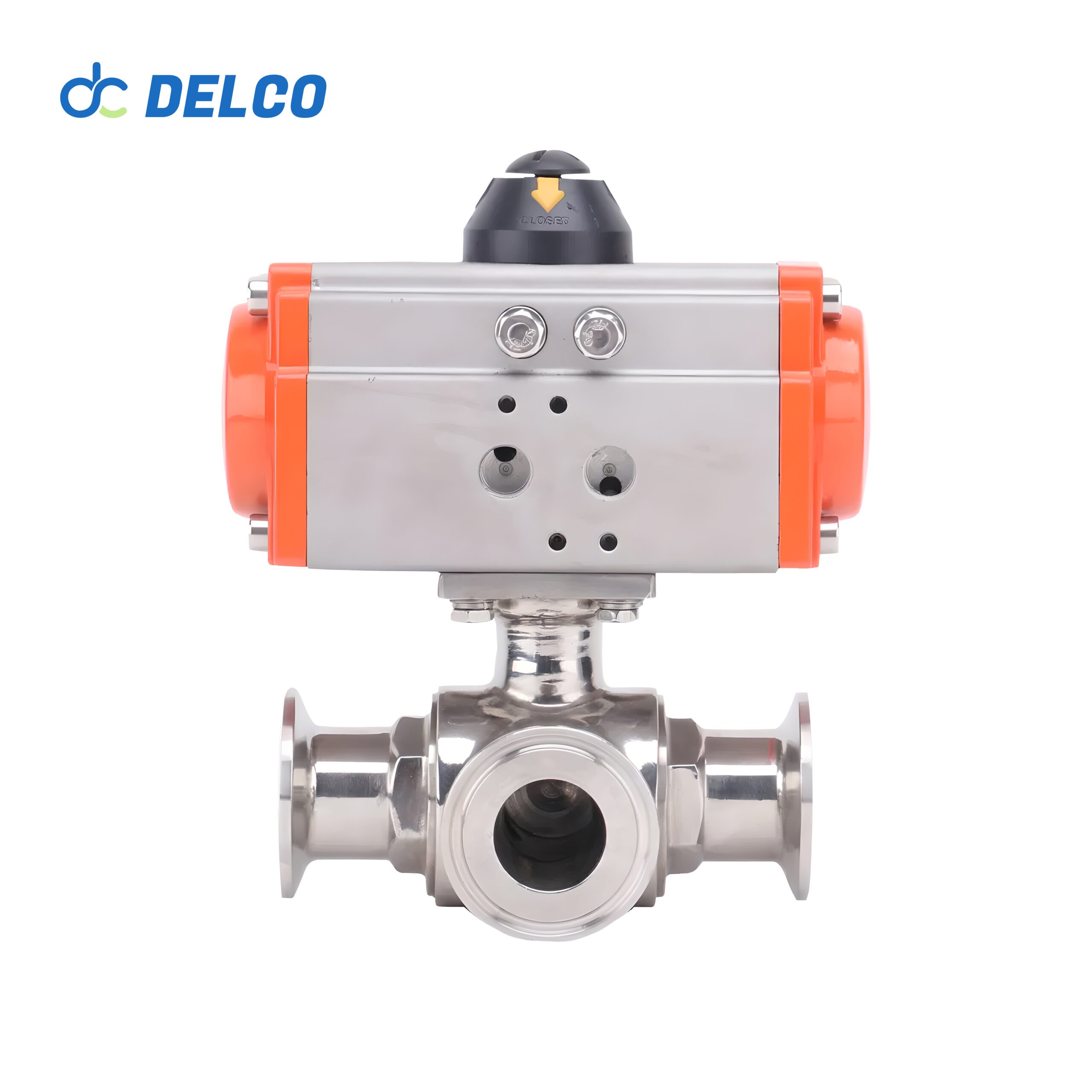

DELCO 3 Way Sanitary Pneumatic Ball Valves Tri Clamp-DK66-3WS
3-way sanitary pneumatic ball valves with tri clamp connections are crucial components in sanitary fluid control systems. These valves are meticulously designed to regulate fluid flow along three distinct pathways, ensuring precise control and distribution in hygienic environments. Featuring tri clamp connections, they offer secure and sanitary installation, minimizing the risk of contamination and facilitating easy maintenance. The pneumatic actuator provides efficient and reliable operation, allowing for rapid response times and accurate fluid control. Widely used in industries such as food and beverage processing, pharmaceuticals, and biotechnology, these valves uphold strict hygiene standards while optimizing fluid management processes.
- Model: Pneumatic Ball Valves
- Size Range: φ19/φ25/φ32/φ38/φ45/φ51/φ57/φ63/φ76/φ89/φ102
- Pressure Range: 1.0 to 1.6MPa
- Material: Stainless Steel 304, 316
What Is The 3 Way Sanitary Pneumatic Ball Valve？
A 3-way sanitary pneumatic ball valve is a specialized component utilized in fluid control systems within industries requiring stringent hygiene standards, such as food and beverage processing, pharmaceuticals, and biotechnology. Unlike traditional ball valves, the 3-way configuration of this valve facilitates the regulation of fluid flow along three distinct pathways, offering enhanced versatility in fluid distribution and control.
It features a pneumatic actuator for efficient and precise operation, allowing for rapid response times and accurate fluid control. The sanitary design, often with tri clamp connections, ensures secure and hygienic installation, minimizing the risk of contamination. These valves play a critical role in optimizing fluid management processes in sanitary environments, providing reliable and efficient fluid control solutions.
Benefits Of 3 Way Sanitary Pneumatic Ball Valves
The advantages of 3-way sanitary pneumatic ball valves with tri clamp connections encompass their hygienic design, precise control, and reliable performance. Constructed with sanitary materials and featuring tri clamp connections, these valves ensure secure and contamination-free installation, meeting strict hygiene requirements.
The pneumatic actuator enables efficient operation and swift response times, enhancing overall system performance. Additionally, the 3-way design offers versatility in fluid distribution applications, providing a flexible solution for diverse sanitary processes. Their robust construction, ease of maintenance, and compatibility with sanitary standards make them ideal for sanitary environments, ensuring reliable and efficient fluid control.
3 Way Sanitary Pneumatic Ball Valves Technical Parameter：
| Material | Stainless steel | Operating temperature | room temperature |
| Seating Material |
PTFE: -20°C-180°C PPL:-10°C ~250°C |
type | Tee |
| Form of connection | Clamp, Welding |
Parts & Accessories | fittings |
| Flow direction | Bidirectional | Hermetically sealed format | Soft-sealed |
| Drive mode | Pneumatic | Applicable media | Water, steam, oil, weak acid and alkali media |
| morphology | spherical | Stressful environment | Atmospheric |
Features Of 3 Way Sanitary Pneumatic Ball Valves
Three-Way Design: This valve adopts a three-way design, allowing flexible adjustment of fluid flow in three different directions, providing more options for flow control.
Tri Clamp Connection: Equipped with tri clamp connections, ensuring safe and hygienic installation, reducing the risk of contamination, and facilitating maintenance and cleaning.
Pneumatic Actuator: The pneumatic actuator provides efficient and reliable operation, achieving rapid response and precise fluid control, enhancing the performance and reliability of the entire system.
Wide Applicability: Widely used in industries such as food and beverage processing, pharmaceuticals, and biotechnology, meeting strict hygiene standards and optimizing fluid management processes.
Reliable and Durable: Robust construction and durable materials enable the valve to withstand long-term use in harsh environments, reducing maintenance costs and extending service life.
Technical Parameters of Valves Actuator
Air source processor: The pneumatic triplet, a vital accessory for pneumatic valves, combines filtering, pressure reduction, and lubrication functions. The pressure reducing valve adjusts inlet pressure to a stable outlet pressure, utilizing the medium’s energy. In two-piece assemblies, it couples with a filter for compressed instrument air filtering. In three-piece configurations, it adds lubrication to the air, ensuring efficient operation.
Pneumatic solenoid valve: The pneumatic solenoid valve, also known as a directional control valve, is a vital component for regulating the opening and closing of pneumatic valves. It functions by magnetizing and demagnetizing, which directs the gas flow based on voltage signals. Commonly employed to manage gas source and circuit flow, these valves offer precise control over valve operations through voltage signals.
Limit switch: The valve limit switch, also called a travel switch, is a critical field instrument in automatic control systems. It detects the valve’s status and outputs signals for open or closed positions. This switch is essential for confirming and executing subsequent programs by programmers. Additionally, it serves as a vital component for valve interlock protection and remote alarm indication within the system. It effectively indicates and provides feedback on mechanical equipment’s movement limit position.
Valve positioner: The valve positioner is a crucial component of pneumatic control valves, enabling precise control over valve positioning. It utilizes the valve stem displacement signal as input feedback and the controller output signal as the control signal. By comparing these signals, any deviation triggers adjustments to the actuator output signal, ensuring a direct correspondence between valve stem displacement and controller output.
Manual device: The manual device is an essential component that complements the pneumatic actuator assembly. It serves to facilitate manual or pneumatic operation for butterfly valves and ball valves with a 90° opening. This mechanism is crucial for ensuring versatility and flexibility in valve operation, allowing for both manual and automated control as needed.
