Flanged Butterfly Valve: Structure, Working, and Applications
Introduction
Flanged butterfly valves are crucial components widely used in pipeline systems. Known for their simple structure, compact size, lightweight, ease of operation, and quick opening and closing capabilities, they have become a popular choice across various industries. This article provides an in-depth look at the structure, working principle, advantages and disadvantages, selection criteria, and applications of flanged butterfly valves.

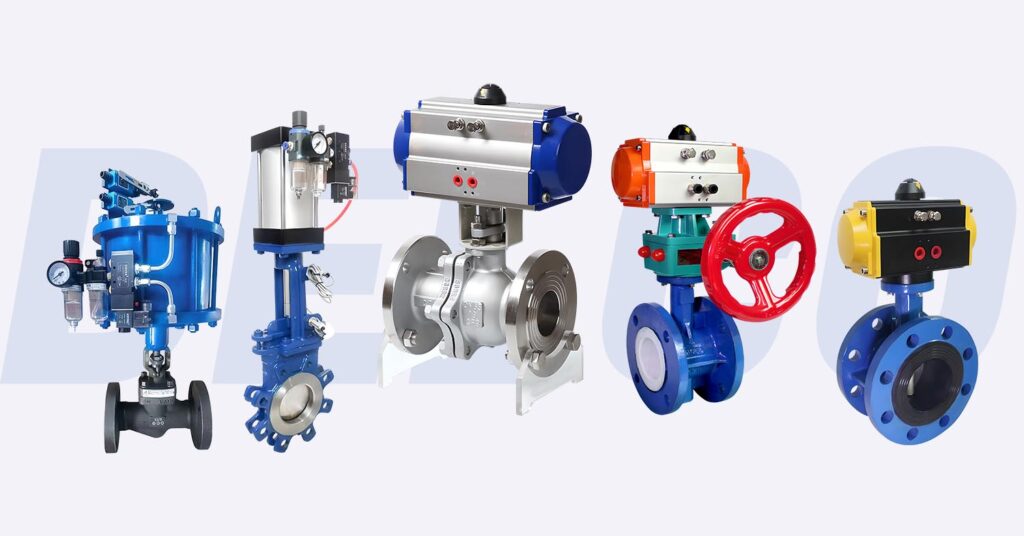

A flanged butterfly valve consists of several key components:
Body: The valve body is the main structure that houses all other components. It is designed with flanges on both ends to connect with the pipeline system.
Disc: The disc, or the “butterfly,” is the component that rotates to open or close the valve. It is positioned in the center of the valve body and rotates around a central axis.
Stem: The stem connects the actuator or handle to the disc, allowing for the transfer of force to open or close the valve.
Seat: The seat provides a sealing surface between the disc and the valve body. It is typically made from resilient materials like rubber or other elastomers to ensure a tight seal when the valve is closed.
Actuator: The actuator can be manual (a lever or a handwheel), pneumatic, electric, or hydraulic, depending on the application requirements. It provides the necessary force to rotate the disc.
Working Principle
The working principle of a flanged butterfly valve is relatively straightforward. The valve operates by rotating the disc, which is positioned in the center of the pipe and is attached to a stem. When the disc is turned a quarter turn (90 degrees), it either blocks or allows fluid flow.
Open Position: When the disc is rotated parallel to the flow direction (aligned with the pipe), the valve is fully open, allowing fluid to pass through with minimal resistance.
Closed Position: When the disc is rotated perpendicular to the flow direction (across the pipe), it blocks the flow, thus closing the valve.
Intermediate Positions: The disc can also be positioned at various angles to regulate the flow rate, providing throttling capabilities.
Flanged butterfly valves offer several advantages, making them suitable for a wide range of applications:
Compact and Lightweight: Compared to other types of valves, butterfly valves are more compact and lighter, which simplifies installation and reduces support requirements.
Quick Operation: The quarter-turn operation allows for rapid opening and closing, which is beneficial in emergency situations.
Cost-Effective: Due to their simple design and fewer components, butterfly valves are generally more economical than other types of valves.
Low Pressure Drop: When fully open, the disc offers minimal obstruction to flow, resulting in a low-pressure drop across the valve.
Versatility: They can be used for both on/off and throttling services and are suitable for handling a wide range of fluids, including gases, liquids, and slurries.
Disadvantages of Flanged Butterfly Valves
Despite their numerous advantages, flanged butterfly valves also have some limitations:
Limited Pressure and Temperature Range: They are not suitable for high-pressure or high-temperature applications compared to globe or gate valves.
Potential for Leakage: The sealing capability of butterfly valves may not be as robust as other valve types, especially in critical applications requiring zero leakage.
Flow Obstruction: Even when fully open, the disc remains in the flow path, which can cause some obstruction and may not be ideal for applications requiring unrestricted flow.
Selection Criteria
Choosing the right flanged butterfly valve for a specific application involves considering several factors:
Size and Pressure Rating: Ensure the valve size matches the pipeline diameter and that the pressure rating is suitable for the system’s operating pressure.
Material Compatibility: Select materials for the body, disc, seat, and stem that are compatible with the fluid being handled to prevent corrosion and ensure longevity.
Actuation Method: Depending on the application, choose the appropriate actuator type (manual, pneumatic, electric, or hydraulic).
Temperature Range: Verify that the valve can operate within the required temperature range of the application.
Flow Control Requirements: Determine whether the valve will be used for on/off control or throttling to select the appropriate design features.
Applications of Flanged Butterfly Valves
Flanged butterfly valves are used in a variety of industries due to their versatility and efficiency:
Water Treatment and Distribution: Commonly used in potable water systems, wastewater treatment plants, and irrigation systems for flow control and isolation.
Chemical and Petrochemical: Used for handling various chemicals, including corrosive substances, due to their material versatility.
Oil and Gas: Employed in pipelines, refineries, and offshore platforms for flow control and emergency shutdown operations.
HVAC Systems: Installed in heating, ventilation, and air conditioning systems to regulate air and water flow.
Food and Beverage: Used in processing plants for handling liquids and ensuring sanitary conditions with appropriate material selections.
Pharmaceutical: Utilized in manufacturing processes for precise flow control and maintaining sterile conditions.
Conclusion
Flanged butterfly valves play a vital role in modern pipeline systems, offering a balance of efficiency, cost-effectiveness, and reliability. Understanding their structure, working principle, advantages, and limitations is crucial for selecting the right valve for specific applications. With proper selection and maintenance, flanged butterfly valves can provide long-lasting performance across a wide range of industries, contributing to the efficient and safe operation of fluid handling systems.
